The Rack Server LiFePO4 battery pack 25.6V LiFePO4 not only has a built-in BMS
system but has an integrated LCD screen that helps users quickly identify any issues and or quickly adjust any settings.

This 25.6V battery pack can be used in parallel systems; it has significant advantages as a backup battery
for communication equipment.
The 25.6V features high power density, small size, long service life, resistance to high temperature,
fast charging and discharging, and an effective modular design.

CHARACTERISTICS

1. Positive electrodes made of LiFePO4 (LFP), ensuring higher safety and a long service life.
2. Compatible with a variety of power supply devices.
3. Built-in BMS system with multiple protections and communication functions, which ensures high reliability of the battery pack and enables real-time monitoring of battery data over a long distance.
4. Low internal resistance, with efficient internal balance of the battery control circuit.
5. Wide working temperature range and high reliability.
6. Support for parallel connection of battery packs, max16p

FEATURES

• RS485/232/Can communication output for monitoring.
• Built-in BMS with charging current limitation.
• Built-in automatic protection for over-charge, over-discharge, low-temperature, and Over-temperature protections.
• State of charge and state of health indication.
• Built-in battery control for efficient operation.
• Internal cell balancing.
• Maintenance free system.

Communication Protocal: LCF/Heating/CAN/485/232

Storage Time Charging
The Normal Voltage is Charged once every 3 months, and the voltage of 10-10.5V must be charged the next day.

Battery Protection
Overcharge Protection, Overydischarge Protection, Overcurrent Protection, Short-Circuit
Protection, Overtemperature Protection

Inverter Connection Brand
GOODWE, PYLONTECH, SOLARAM, Victron Energy, GROWATT, SolaXPower, SOFAR, LUXPower, MUST, LTW, SOROREC, MEGAREVO, Voltronic Power, SRNE, PYLONTECH, DEYE, etc.

APPLICATION
Telecom Power-Post and Telecommunications, Communications, Power Stations, Power
Transmission, UPS, Computer Systems, Lighting Systems, Solar Energy, Wind Energy, Home Energy Storage, etc.

25.6V100AH

1.Product Name: LiFePO4 Battery Pack
2.Model: 25.6V100AH
3.Nominal Voltage: 25.6V
4.Rated Capacity: 100AH
5.BMS Charge Current: 50A 0.5C(max)
6.BMS Discharge Current: 100A 1C(max)
7.Charge Cut-off Voltage: 28.8V
8.Discharge Cut-off Voltage: 20V
9.Product Dimension: L460*W290*H195(mm)
10.Net Weight: 32kg
11.Case Material: ABS
12.Communication Protocol: Customized
13.Cycle Life: 6000
14.Warranty: 5years
15.Application: Lead Acid Replacement/Electrocars/RV/ Home Energy Storage
16.OEM&ODM are supported.All specifications are customized available.
17.Cell:CATL-BYD-EVE

25.6V200AH

1.Product Name: LiFePO4 Battery Pack
2.Model: 25.6V200AH
3.Nominal Voltage: 25.6V
4.Rated Capacity: 200AH
5.BMS Charge Current: 100A 0.5C
6.BMS Discharge Current: 100A 0.5C
7.Charge Cut-off Voltage: 28.8V
8.Discharge Cut-off Voltage: 20V
9.Product Dimension:L480*W420*H176(mm)(4U)
10.Net Weight: 50kg
11.Case Material: ABS
12.Communication Protocol: Customized13.Cycle Life: 6000
13.Cycle Life: 6000
14.Warranty: 5years
15.Application: Lead Acid Replacement/Electrocars/RV/ Home Energy Storage
16.OEM&ODM are supported.All specifications are customized available.
17.Cell:CATL-BYD-EVE

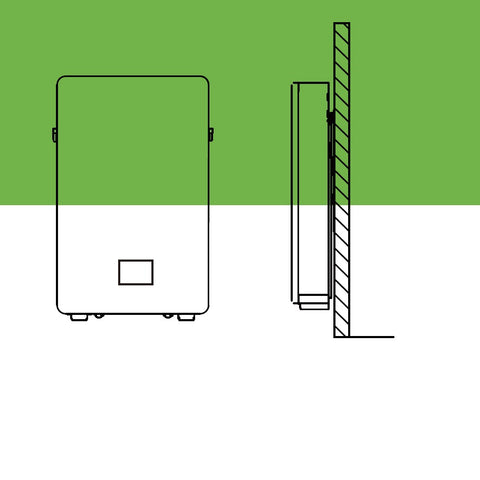

25.6V LiFePo4 Wall Mounted Battery 100AH 200AH
