Commercial Solar PV Kits are ideally suited for any business that is looking to reduce rising energy costs and hedge against future energy inflation.Our pre-engineered kits are suitable for most installation sites including commercial roof tops and ground mounting locations.

FEATURES:

1.HELP THE ENVIRONMENT

Business owners reduce electricity costs whilst simultaneously promote their brand commitment to the environment and enhace their social corporate responsibility.

2.INCREASE YOUR VALUE

Depreciate financial contributions and sell any excess electricity generated by the system back to the grid.Increase the ROI and enjoy added marketing benefits from a highly visible landmark.

3.USE THE GRID AT NIGHT

Let our systems fit in your needs.We offer flexible design to serve space restricted areas.They come in a variety of inverter voltage ranges which can be adapted to site-specific electrical requirements.

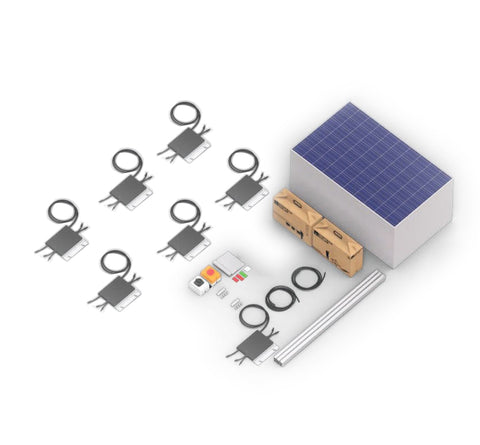

WHAT'S IN THE KITS

Solar modules
Solar on-grid inverter (3 phase)
Custom roof mounting system
PV wiring harnesses

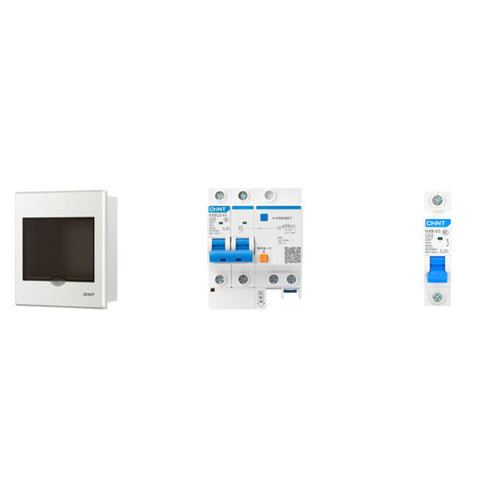

DC and AC disconnects
Wire management kit
Safety label kit
Single and three-line electrical and mechanical schematics

SYSTEM LIST

Item	PV Solar Panel	Mounting System	Inverter	Distribution box	Cables
10KW	20pcs 500W	For Pitched / Flat Roof or Ground Installation	10PCS 1000W	1pcs	200m
15KW	30pcs 500W		15PCS 1000W	2pcs	300m
20KW	40pcs 500W		20PCS 1000W	2pcs	400m
30KW	60pcs 500W		30PCS 1000W	3pcs	600m
40KW	80pcs 500W		40PCS 1000W	4pcs	800m
50KW	100pcs 500W		50PCS 1000W	5pcs	1000m
60KW	120pcs 500W		60PCS 1000W	5pcs	1200m
70KW	140pcs 500W		70PCS 1000W	6pcs	1400m
80KW	160pcs 500W		80PCS 1000W	7pcs	1600m
90KW	180pcs 500W		90PCS 1000W	8pcs	1800m
100KW	200pcs 500W		100PCS 1000W	9pcs	2000m

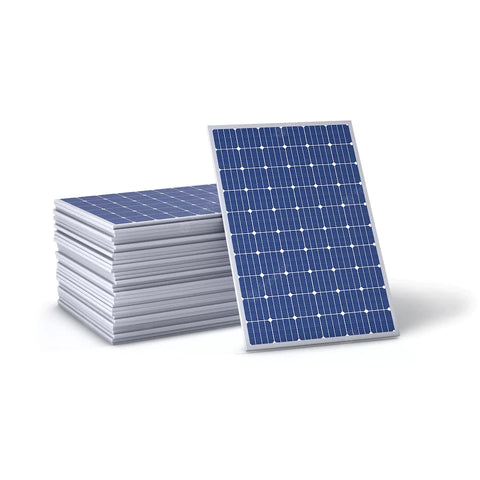

PV Solar Panel 500W

Solar Cell	MONO	Module Efﬁciency(%)	21.80%
Voltage at Pmax (Vmp)	41.97	Current at Pmax (Imp)	13.11
Open Circuit Voltage(Voc)	49.95	Short Circuit Current(lsc)	14.05
Dimension	2279×1134×35mm	Tempered Glass	3.2 mm High Permeability Coated
Frame	Anodized aluminum alloy	Power Tolerance(w)	±3%
Warrnanty: 10 Year Period 10 year period predicted output : Min. 90%, 25 year period predicted output : Min. 85%.

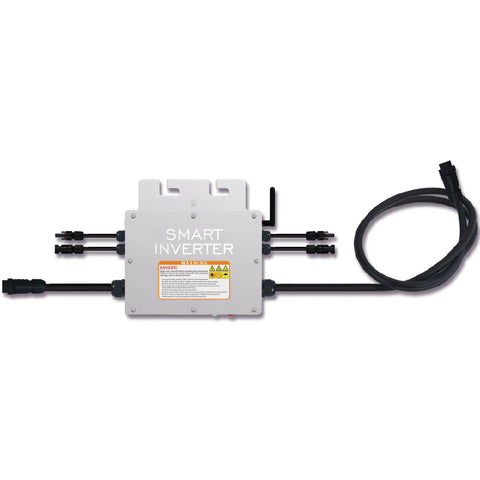

Micro Inverter 1000W

Number of Input MC4 Connector	2 Sets
MPPT Voltage Range	28V-55V
Operation Voltage Range	20V-60V
Maximum Input Voltage	60V
Startup Voltage	20V
Maximum Input Power	2*500W
Maximum Input Current	2*16.66A

Output Data(AC)

Single-Phase Grid Type	230V
Rated Output Power	950W
Maximum Output Power	1000W
Nominal Output Current	4.13A
Nominal Output Voltage	230VAC
Default Output Voltage Range	230VAC : 180V-280V
Nominal Output Frequency	50Hz / 60Hz
Default Output Frequency Range	50Hz : 47.5Hz-52.5Hz/60Hz : 57.5Hz-62.5Hz
Power Factor	>0.99
Total Harmonic Distortion	THD <5%
Maximum Units per Branch	4 Sets

Efﬁciency

Peak Efﬁciency	95%
CEC Weighted Efﬁciency	230VAC : 93.5%
Nominal MPPT Efﬁciency	99.90%
Night Power Consumption	<700mW

Mechanical Data

Operating Ambient Temperature Range	-40°C to +65°C
Storage Temperature Range	-40°C to +85°C
Max Current of AC Bus Cable	20A
Waterproof Grade	IP65

Other Features
Communication	WIFI With Cloud Monitoring
Transformer Design	High Frequency Transformers, Galvanically Isolated
Integrated Ground	Equipment ground is provided by the PE in the AC cable. No additional ground is required.
Protection Functions	Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc.

380v Micro Inverter Solar Energy System On-Grid 10-100KW
