FEATURES

1: Wall-mounted installation, saving space and easy to use
2: 4-way 3W/5W lights switch(3indoor lights+1 outdoor light)
3: DC connector, easy to install
4: Multiple battery protection: overcharge protection, overdischarge protection, overload protection, reverse
connection protection
5: PWM controller
6: High conversion efficiency solar panel

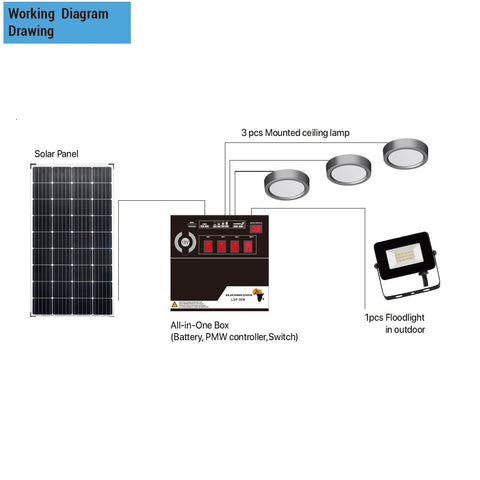

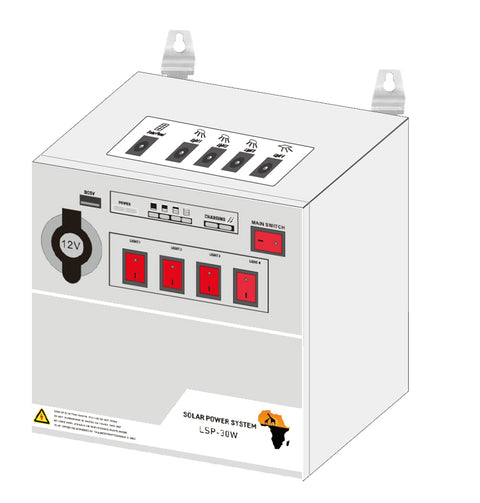

1. All-in-One Box
including Battery, PMW controller, Switch（Main, and sub-switch
for lamp）
Avoid complicated wiring and simple operation.
Installation: Mounted.
with easy mounted-bracket, make installation easy
while no-dust.

2. GEL batter/ LiFePO4
Two kinds of Battery are supported.
12V 12AH 144W / 12V 24AH 288W
2 kinds of battery capacity are provided to support enough
lighting working time and Other electricity needs

3. Out-door&In-door Lighting
Outdoor: 1pcs Floodlight 3w/5w IP65
Indoor: 3pcs Ceiling Lamp 3w/5w
Installation: Mounted Installation
Outdoor or Indoor lighting is provided.

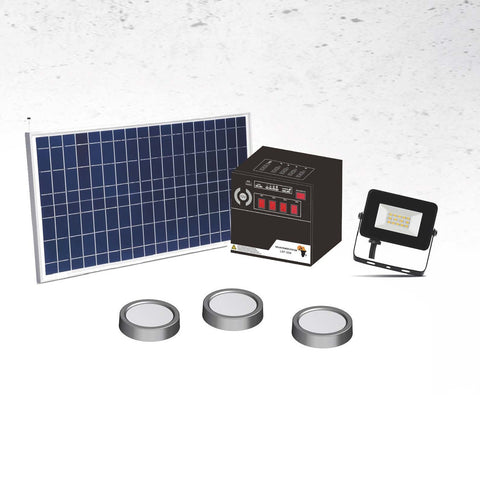

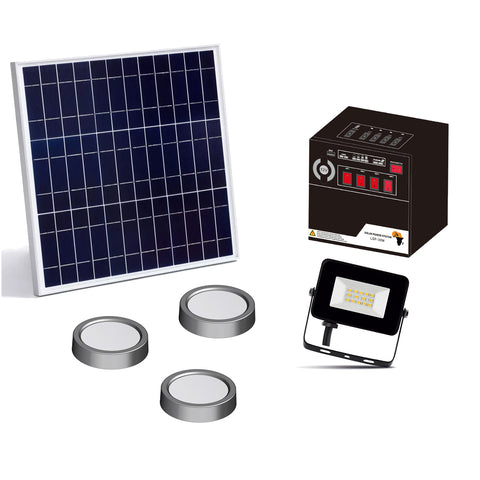

SYSTEM LIST

SYSTEM LIST	QTY	Description
Solar home box	1	Solar home box, DC12V12AH,Controller,with Main switch,4switch for the lights,5V1A USB2.0 port, DC12V Cigarette Lighter Type Sockets,with mounting kits
Solar panel	1	18V 30W polysilicon solar panel with 5M/10M Cable
DC12v 3/5W Indoor light	3	DC12V 3/5W 360LM 6000-6500K,5M/10M Cable,with mounting kits
DC12 3/5W Outdoor light	1	DC12V 3/5W 360LM 6000-6500K,5M Cable,with mounting kits,IP65
10in 1 charger cable	1	10in 1 Charge cable,Mini USB Port,TYPE-C.Lightning. Micro-USB

	ITEM	LSP-L30W	LSP-L30WT	LSP-G30W	LSP-G30WT

Solar Panel	PV moudle	18V 30W polysilicon solar panel 1PCS	18V 60W polysilicon solar panel 1PCS	18V 30W polysilicon solar panel 1PCS	18V 60W polysilicon solar panel 1PCS
	Lifetime	25Years

Solar Charger controller		PMW
Chargering Time		4-5 hours		4-5 hours

Battery Type		LiFePO4 144W	LiFePO4 288W	GEL 144W	GEL 288W
	Capacity	12AH		24AH
	Voltage	12V		12V
	Lifetime	5 Years		3 Years
	Circuit Protection	Overcharge, Discharge, Short-Circuit, Open Load, reverse polarity protection

LED lighting	Indoor	3pcs 3W Ceiling Lamp Dia80*17mm	3pcs 5W Ceiling Lamp Dia80*17mm	3pcs 3W Ceiling Lamp Dia80*17mm	3pcs 5W Ceiling Lamp Dia80*17mm
	Outdoor	1pcs 3W Floodlight	1pcs 5W Floodlight	1pcs 3W Floodlight	1pcs 5W Floodlight
	Working time back-up	8hours
	Lum	120lm/W
	Installation	Mounted
	Lifetime	5Years

Ports

	1pcsx 12V DC Cigarette Lighter Type Sockets
	4pcs x 12V DC 5521
	1pcs x 5V 1A USB2.0 Port

DC Solar Home Lighting System
