FEATURES

1: Wall-mounted installation, saving space and easy to use
2: 8-way 5W lights switch(6indoor lights+2 outdoor light)
3: DC connector, easy to install
4: Multiple battery protection: overcharge protection, overdischarge protection, overload protection, reverse connection protection
5: PWM controller
6: High conversion efficiency solar panel

1. Center Controller
PMW controller, Switch（Main, and sub-switch for lamp）
Avoid complicated wiring and simple operation.

Installation: Mounted.
with easy mounted-bracket, make installation easy
while no-dust.

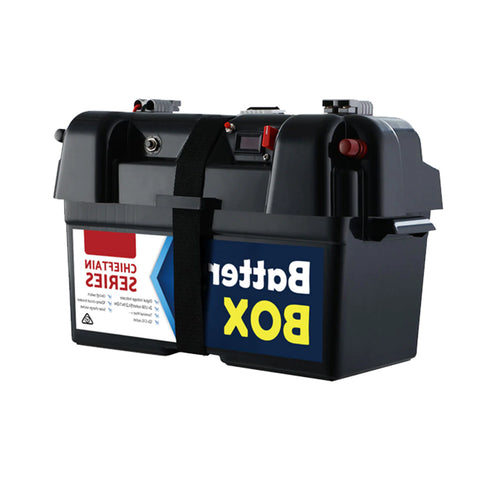

2. GEL battery/ lithium battery
Two kinds of Battery are supported.

1000W 1200W
2 kinds of battery capacity are provided to support enought lighting working time and Other electricity needs

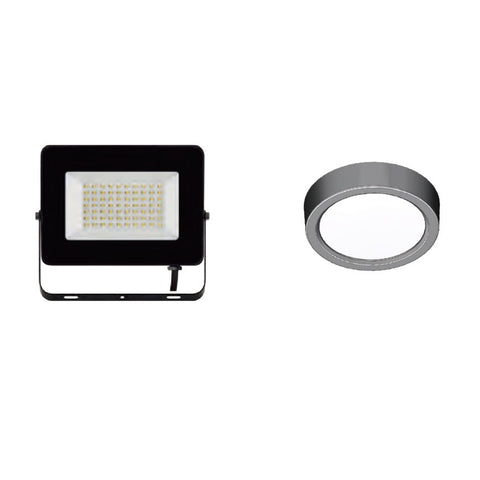

3. Out-door&In-door Lighting
Outdoor: 2pcs Floodlight 5w IP65
Indoor: 6pcs Ceiling Lamp 5w
Installation: Mounted Installation
Outdoor or Indoor lighting is provided.

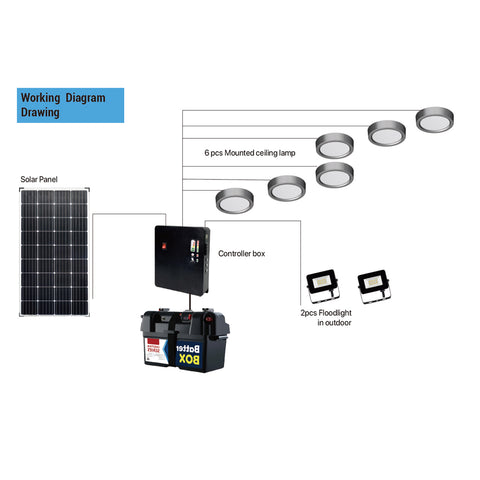

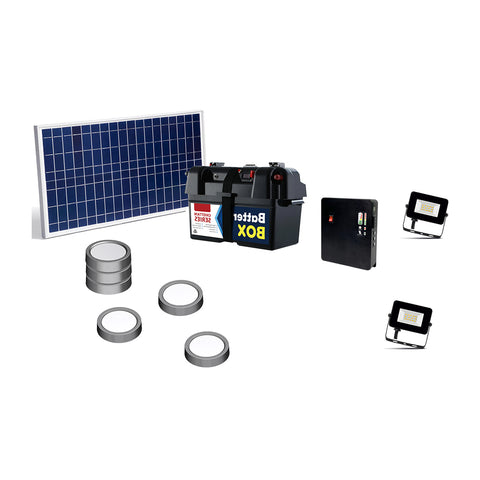

SYSTEM LIST

SYSTEM LIST	QTY	Description
Solar Controller box	1	PMW controller, Switch（Main, and sub-switch for lamp） Avoid complicated wiring and simple operation. Installation: Mounted. with easy mounted-bracket, make installation easy while no-dust.
Battery	1	GEL battery/ lithium battery Two kinds of Battery are supported. 1000W 1200W 2 kinds of battery capacity are provided to support enought lighting working time and Other electricity needs
Solar panel	1	140W/170W polysilicon solar panel with 0M Cable
DC12v 3/5W Indoor light	6	DC12V 5W 360LM 6000-6500K,5M/10M Cable,with mounting kits
DC12 3/5W Outdoor light	2	DC12V 5W 360LM 6000-6500K,5M Cable,with mounting kits,IP65
Ports	1	Charge cable,Mini USB Port,TYPE-C.Lightning. Micro-USB

Specifications:

	ITEM	LSP-L1000W	LSP-L1200WT	LSP-G1000W	LSP-G1200WT

Solar Panel	PV moudle	18V 140W polysilicon solar panel 1PCS	18V 170W polysilicon solar panel 1PCS	18V 140W polysilicon solar panel 1PCS	18V 170W polysilicon solar panel 1PCS
Solar Panel	Lifetime	25Years

Solar Charger controller		PMW
Chargering Time		4-5 hours		4-5 hours

Battery Type		lithium battery 1000W	lithium battery 1200W	GEL 1000W	GEL 1200W
	Capacity	65AH	100AH	65AH	100AH
	Voltage	12V	12V	12V	12V
	Lifetime	5 Years	5 Years	3 Years	3Years
	Circuit Protection	Overcharge, Discharge, Short-Circuit, Open Load, reverse polarity protection

LED lighting	Indoor	6pcs 5W Ceiling Lamp Dia80*17mm	6pcs 5W Ceiling Lamp Dia80*17mm	6pcs 5W Ceiling Lamp Dia80*17mm	6pcs 5W Ceiling Lamp Dia80*17mm
LED lighting	Outdoor	2pcs 5W Floodlight	2pcs 5W Floodlight	2pcs 5W Floodlight	2pcs 5W Floodlight
	Working time back-up	8hours
	Lum	120lm/W
	Installation	Mounted
	Lifetime	5Years

Ports

	2pcsx 12V DC Cigarette Lighter Type Sockets
	3pcs x 12V DC 5521
	3pcs x 5V 1A USB2.0 Port

DC Solar Home Lighting System 1000W 1200W
