Residential Solar Energy Kits are the most cost effective and easy PV solution available for home use.They are
ideally suited for any household that is looking to reduce energy costs using an efficient and clean energys
stem.

1. SWITCH ON AND OFF

Our grid-tied systems allow homeowners to get power from either their solar electric system or the utility grid,switching seamlessly between the grid-tied PV system and the
grid.

2. SELL BACK YOUR POWER

When your grid-tied system is producing more power than your home is consuming,the
excess power can often be sold back to the utility in a practice known as net metering.

3. USE THE GRID AT NIGHT

When your system is not producing sufficient power or during non-daylight hours your
home can draw power from the utility grid.

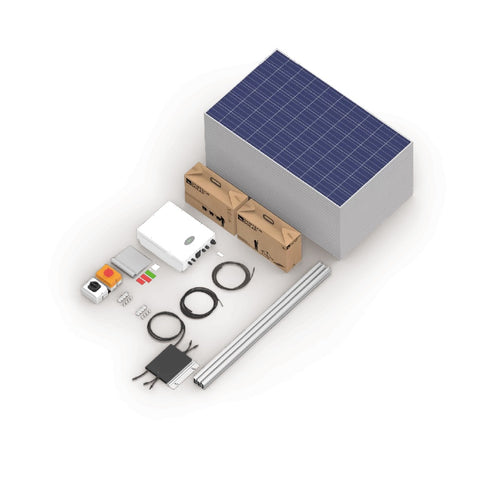

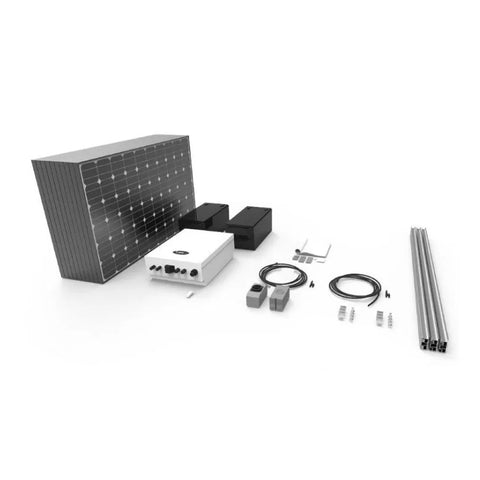

RESIDENTIAL PV SYSTEMS READY TO INSTALL
Configured in a'plug n play 'solution,our On-Grid residential PV systems allow installers to safely connect them to the AC main
service panel of any household anywhere in the world.Owners are given the option to either auto consume the power generated from

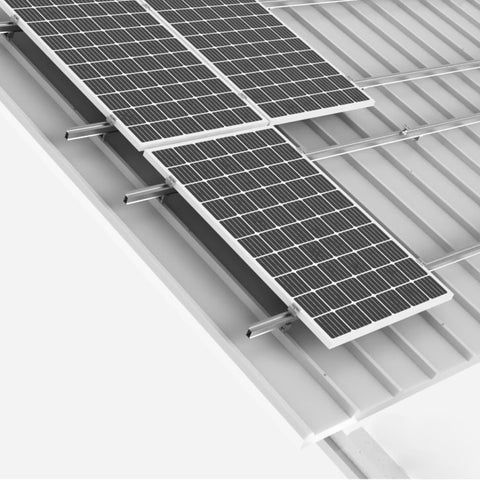

their PV system or sell excess energy back to their local utility provider. These systems are offered with mounting systems for
multiple roof types and configurations which offers stability and aesthetics to any rooftop.

System list

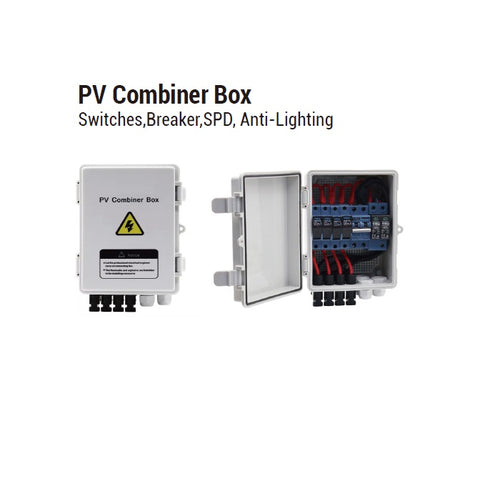

Item	PV Solar Panel	Inverter	Mounting System	PV combiner box	PV Cable
3KW	6pcs 500W	1pcs	1.Tile Rooftop System 2.Meta Sheet Rooftop System	1pcs	2*50M
3KW	8pcs 500W	1pcs		1pcs	2*50M
5KW	10pcs 500W	1pcs		1pcs	2*50M
6KW	12pcs 500W	1pcs		1pcs	4*50M
8KW	16pcs 500W	1pcs		1pcs	2*50M
10KW	20pcs 500W	1pcs		1pcs	4*50M

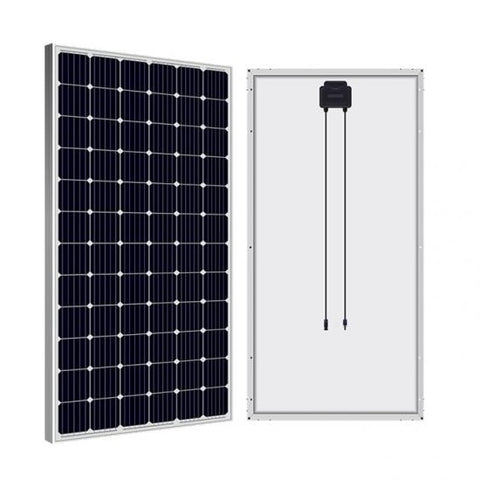

PV Solar Panel 500W

Solar Cell	MONO	Module Efﬁciency(%)	21.80%
Voltage at Pmax (Vmp)	41.97	Current at Pmax (Imp)	13.11
Open Circuit Voltage(Voc)	49.95	Short Circuit Current(lsc)	14.05
Dimension	2279×1134×35mm	Tempered Glass	3.2 mm High Permeability Coated
Frame	Anodized aluminum alloy	Power Tolerance(w)	±3%
Warrnanty: 10 Year Period 10 year period predicted output : Min. 90%, 25 year period predicted output : Min. 85%.

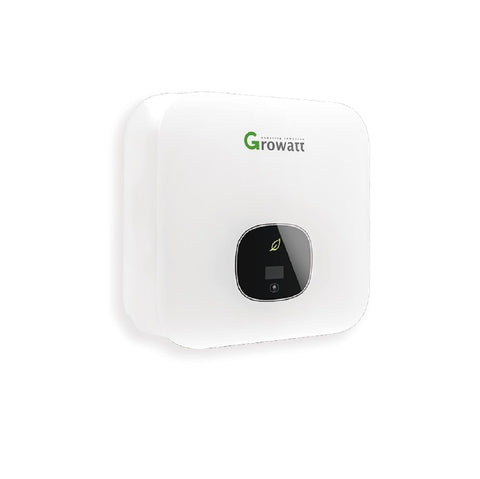

Central Inverter

Model No.	Mini3000W	Mini4000W	Mini5000W	Mini6000W	Mini8000W	Mini10000W
Input Data(DC)
Max. DC Power	4.2 kW	5.88 kW	7 kW	8.1 kW	12 kW	15 kW
Max. DC Voltage	500 V	550 V	550 V	550 V	600 V	600 V
Nominal DC Voltage	360 V	360 V	360 V	360 V	360 V	360 V
Max. DC Current	12.5 A	12.5 A	12.5 A	12.5 A	13.5 A	27 A
MPP(T) Voltage Range	80~500 V	80~550 V	80~550 V	80~550 V	60~550 V	60~550 V
Connectors	MC4	MC4	MC4	MC4	MC4	MC4
Output Data (AC)
Max. AC Power	3 kW	4.2 kW	5 kW	6 kW	8 kW	10 kW
Nominal AC Voltage	230 V	230 V	230 V	230 V	230 V	230 V
Max. AC Current	13.6 A	19 A	22.7 A	27.2 A	38.3 A	45.5 A
Frequency	50, 60 Hz	50, 60 Hz	50, 60 Hz	50, 60 Hz	50, 60 Hz	50, 60 Hz
Power Factor (cosθ)	0.8	0.8	0.8	0.8	0.8	0.8
Distortion (THD)	< 3 %	< 3 %	< 3 %	< 3 %	< 3 %	< 3 %
No of feed-in phases	1	1	1	1	1	1
Max. Efficiency	98.20%	98.40%	98.40%	98.40%	98.10%	98.10%
Euro Efficiency	97.10%	97.50%	97.50%	97.50%	97.60%	97.60%

Solar System (on Grid) Single-Phase 3W/4W/5W/6W/8W/10W
