Commercial Solar System are ideally suited for any business that is looking to reduce rising energy costs and
hedge against future energy inflation.Our pre-engineered kits are suitable for most installation sites including
commercial roof tops and ground mounting locations.

1. HELP THE ENVIRONMENT

Business owners reduce electricity costs whilst simultaneously promote their brand commitment to the environment and enhance their social corporate responsibility.

2. INCREASE YOUR VALUE

Depreciate financial contributions and sell any excess electricity generated by the system back to the grid.Increase the ROI and enjoy added marketing benefits from a
highly visible landmark.

3. GREAT ADAPTABILITY

Let our systems fit in your needs.We offer flexible design to serve space restricted
areas.They come in a variety of inverter voltage ranges which can be adapted to site-specific electrical requirements.

SOLAR POWER FOR YOUR BUSINESS
Offered in both pre-configured and site specific designs, PV systems save time and money when planning and adopting solar into
commercial settings.
Designed to match your business's requirements,commercial PV systems are delivered install ready and hold internationally compliant
certifications.

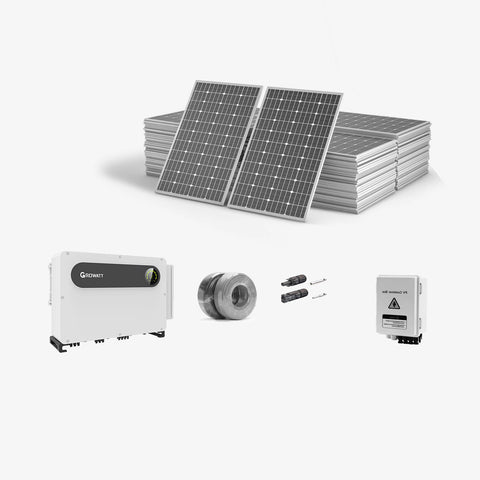

System list

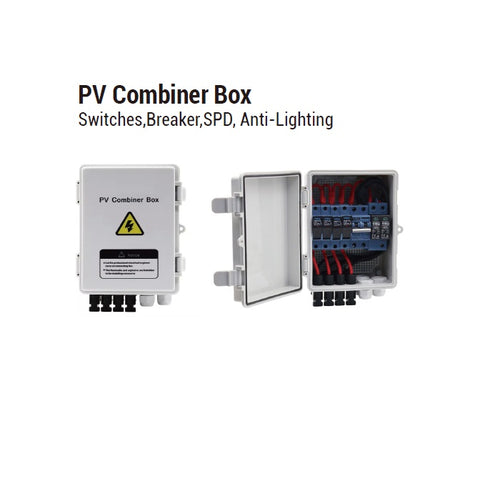

Item	PV Solar Panel	Inverter	Mounting System	PV combiner box	PV Cable

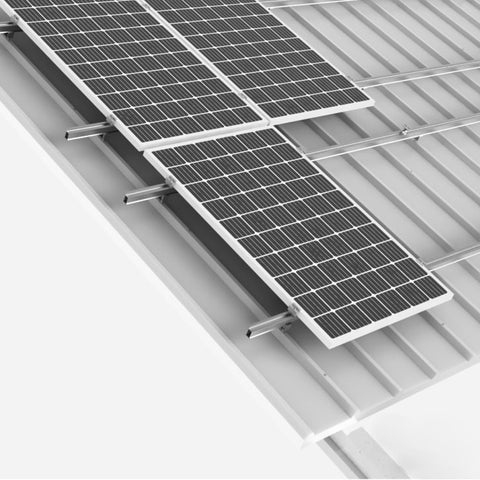

100KW	200pcs 500W	1pcs	1.Tile Rooftop System 2.Meta Sheet Rooftop System	2pcs	14*50M
110KW	220pcs 500W	1pcs		2pcs	15*50M
120KW	240pcs 500W	1pcs		2pcs	16*50M
125KW	250pcs 500W	1pcs		2pcs	17*50M

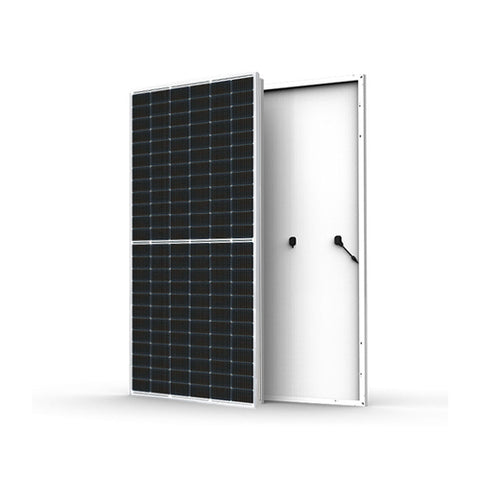

PV Solar Panel 500W

Solar Cell	MONO	Module Efﬁciency(%)	21.80%
Voltage at Pmax (Vmp)	41.97	Current at Pmax (Imp)	13.11
Open Circuit Voltage(Voc)	49.95	Short Circuit Current(lsc)	14.05
Dimension	2279×1134×35mm	Tempered Glass	3.2 mm High Permeability Coated
Frame	Anodized aluminum alloy	Power Tolerance(w)	±3%
Warrnanty: 10 Year Period 10 year period predicted output : Min. 90%, 25 year period predicted output : Min. 85%.

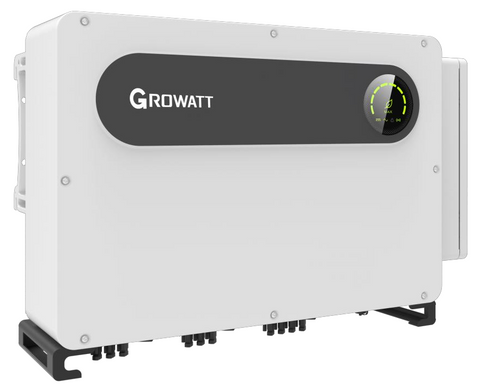

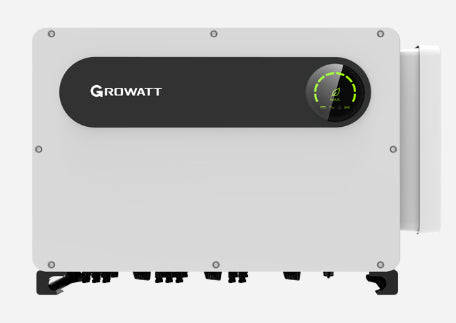

Central Inverter

Datasheet	MAX 100K	MAX 110K	MAX 120K	MAX 125K
Input data (DC)
Max. DC voltage	1100V
Start Voltage	195V
Nominal voltage	600V
MPP voltage range	180-1000V
No. of MPP trackers	10
No. of PV strings per MPP tracker	2
Max. input current per MPP tracker	32A
Max. short-circuit current per MPP tracker	40A
Output data (AC)
AC nominal power	100000W	110000W	120000W	125000W
Max. AC apparent power	110000VA	121000VA	132000VA	137500VA
Nominal AC voltage (range*)	400V/380V, (340-440VAC)
AC grid frequency (range*)	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	164.1A	165.4A	179.9A	198.5A
Adjustable power factor	0.8leading…0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE

Solar System (on Grid) Three-Phase 100W/110W/120W/125W
