Commercial Solar System are ideally suited for any business that is looking to reduce rising energy costs and
hedge against future energy inflation.Our pre-engineered kits are suitable for most installation sites including
commercial roof tops and ground mounting locations.

1. HELP THE ENVIRONMENT

Business owners reduce electricity costs whilst simultaneously promote their brand commitment to the environment and enhance their social corporate responsibility.

2. INCREASE YOUR VALUE

Depreciate financial contributions and sell any excess electricity generated by the system back to the grid.Increase the ROI and enjoy added marketing benefits from a
highly visible landmark.

3. GREAT ADAPTABILITY

Let our systems fit in your needs.We offer flexible design to serve space restricted
areas.They come in a variety of inverter voltage ranges which can be adapted to site-specific electrical requirements.

SOLAR POWER FOR YOUR BUSINESS
Offered in both pre-configured and site specific designs, PV systems save time and money when planning and adopting solar into
commercial settings.
Designed to match your business's requirements,commercial PV systems are delivered install ready and hold internationally compliant
certifications.

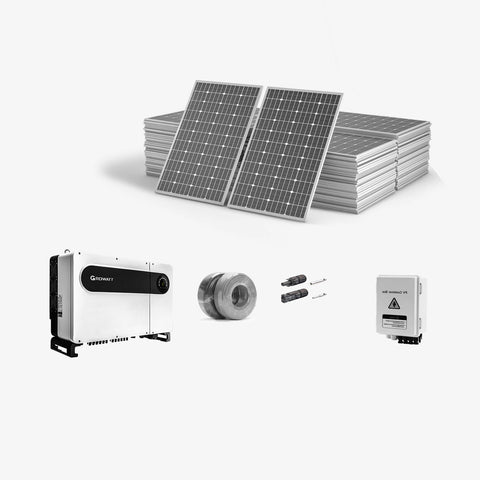

System list

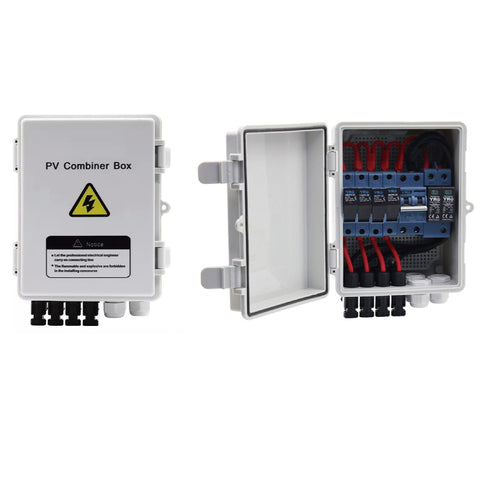

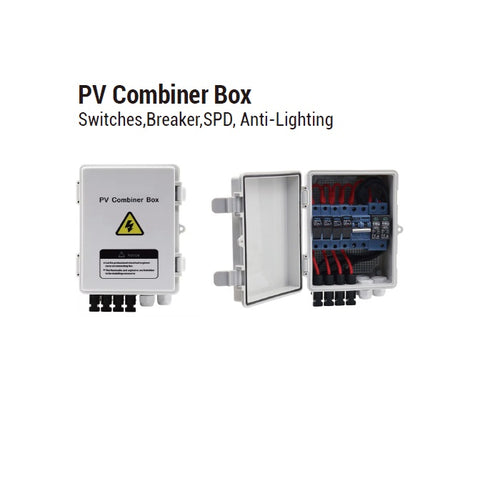

Item	PV Solar Panel	Inverter	Mounting System	PV combiner box	PV Cable

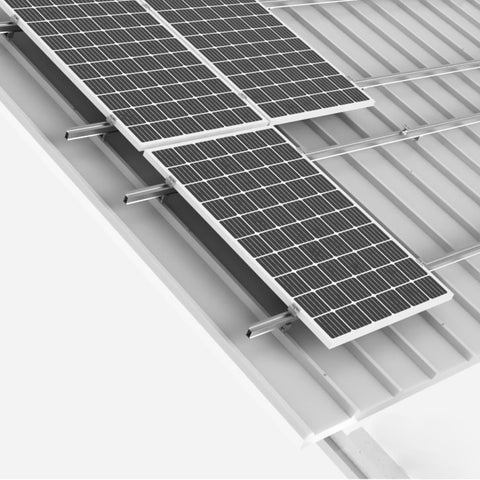

50KW	30pcs 500W	1pcs	1.Tile Rooftop System 2.Meta Sheet Rooftop System	1pcs	6*50M
60KW	40pcs 500W	1pcs		1pcs	8*50M
70KW	50pcs 500W	1pcs		1pcs	10*50M
80KW	60pcs 500W	1pcs		1pcs	11*50M

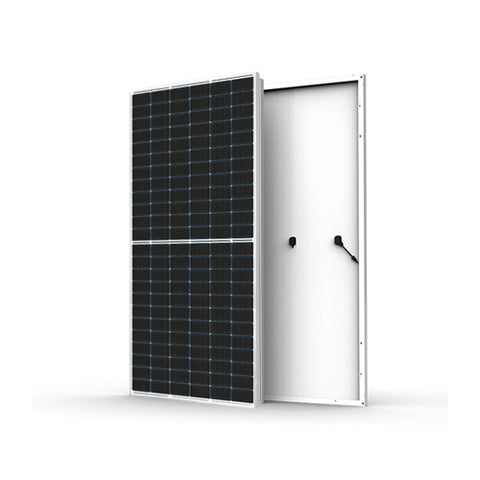

PV Solar Panel 500W

Solar Cell	MONO	Module Efﬁciency(%)	21.80%
Voltage at Pmax (Vmp)	41.97	Current at Pmax (Imp)	13.11
Open Circuit Voltage(Voc)	49.95	Short Circuit Current(lsc)	14.05
Dimension	2279×1134×35mm	Tempered Glass	3.2 mm High Permeability Coated
Frame	Anodized aluminum alloy	Power Tolerance(w)	±3%
Warrnanty: 10 Year Period 10 year period predicted output : Min. 90%, 25 year period predicted output : Min. 85%.

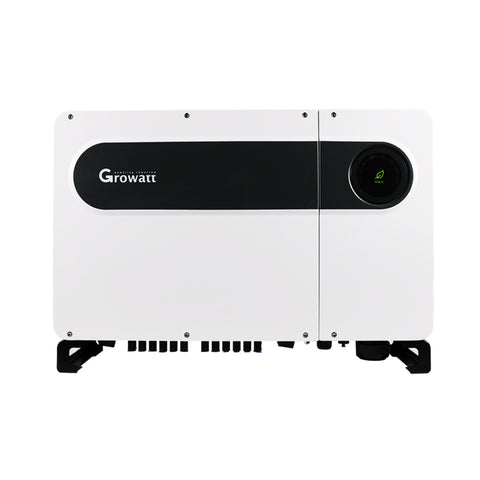

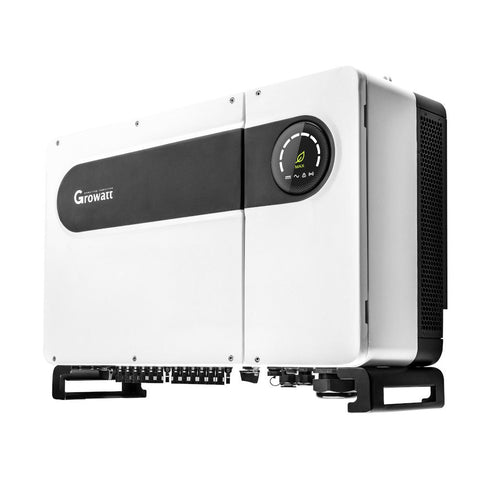

Central Inverter

Datasheet	MAC 50K	MAC 60K	MAC 70K	MAC 80K
Inputu data (DC)
Max. recommended PV power(for module STC)	75000W	90000W	105000W	120000W
Max.DC voltage	1100V
Start voltage	250V
Nominal voltage	600V
MPPT voltage range	200V-1000V
No. of MPP trackers	2
Max. input current per MPP tracker	26A
Max. short-circuit current per MPP tracker	32A
Output data (AC)
Rated AC output power	50000W	60000W	70000W	80000W
Max. AC apparent power	55500VA	66600VA	77700VA	88800VA
Nominal AC voltage(range*)	230V/400V (340-440V)
AC grid frequency(range*)	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	80.5A	96.6A	80.5A	96.6A
Adjustable power factor	0.8leading ...0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE

Solar System (on Grid) Three-Phase 50W/60W/70W/80W
