Residential Solar Energy Kits are the most cost effective and easy PV solution available for home use.They are
ideally suited for any household that is looking to reduce energy costs using an efficient and clean energy.
stem.

1. SWITCH ON AND OFF

Our grid-tied systems allow homeowners to get power from either their solar electric system or the utility grid,switching seamlessly between the grid-tied PV system and the
grid.

2. SELL BACK YOUR POWER

When your grid-tied system is producing more power than your home is consuming,the
excess power can often be sold back to the utility in a practice known as net metering.

3. USE THE GRID AT NIGHT

When your system is not producing sufficient power or during non-daylight hours your
home can draw power from the utility grid.

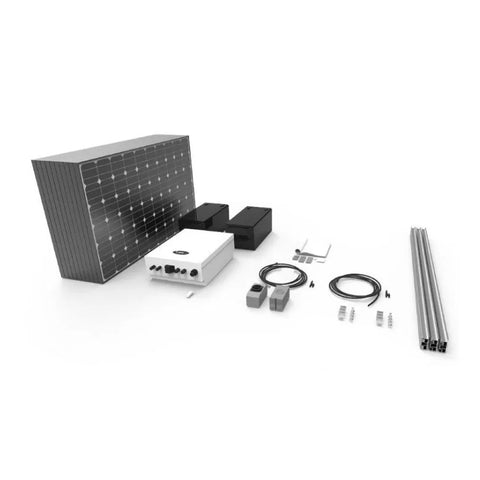

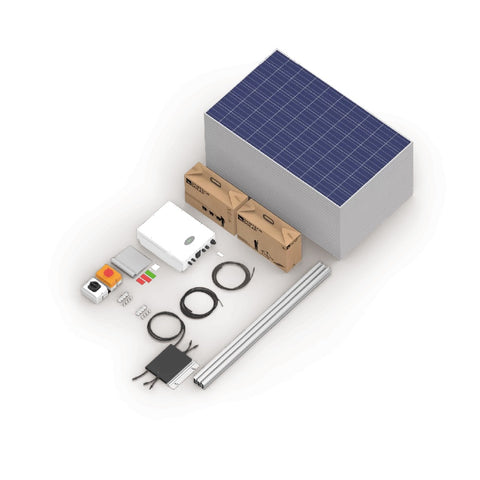

RESIDENTIAL PV SYSTEMS READY TO INSTALL
Configured in a'plug n play 'solution,our On-Grid residential PV systems allow installers to safely connect them to the AC main
service panel of any household anywhere in the world.Owners are given the option to either auto consume the power generated from

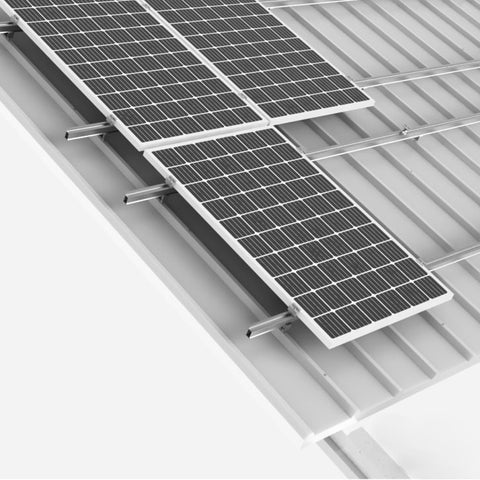

their PV system or sell excess energy back to their local utility provider. These systems are offered with mounting systems for
multiple roof types and configurations which offers stability and aesthetics to any rooftop.

System list

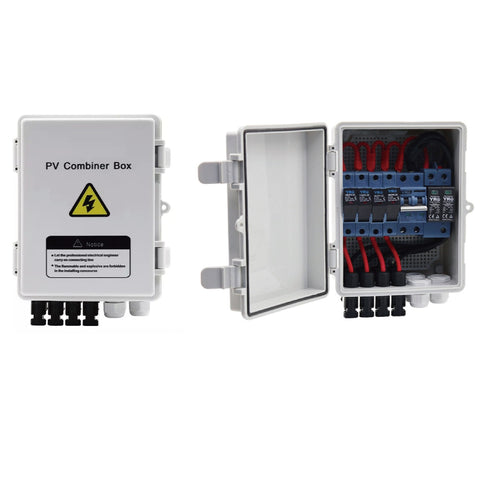

Item	PV Solar Panel	Inverter	Mounting System	PV combiner box	PV Cable
5KW	10pcs 500W	1pcs	1.Tile Rooftop System 2.Meta Sheet Rooftop System	1pcs	2*50M
8KW	16pcs 500W	1pcs		1pcs	2*50M
10KW	20pcs 500W	1pcs		1pcs	4*50M
12KW	24pcs 500W	1pcs		2pcs	4*50M
15KW	30pcs 500W	1pcs		2pcs	4*50M

PV Solar Panel 500W

Solar Cell	MONO	Module Efﬁciency(%)	21.80%
Voltage at Pmax (Vmp)	41.97	Current at Pmax (Imp)	13.11
Open Circuit Voltage(Voc)	49.95	Short Circuit Current(lsc)	14.05
Dimension	2279×1134×35mm	Tempered Glass	3.2 mm High Permeability Coated
Frame	Anodized aluminum alloy	Power Tolerance(w)	±3%
Warrnanty: 10 Year Period 10 year period predicted output : Min. 90%, 25 year period predicted output : Min. 85%.

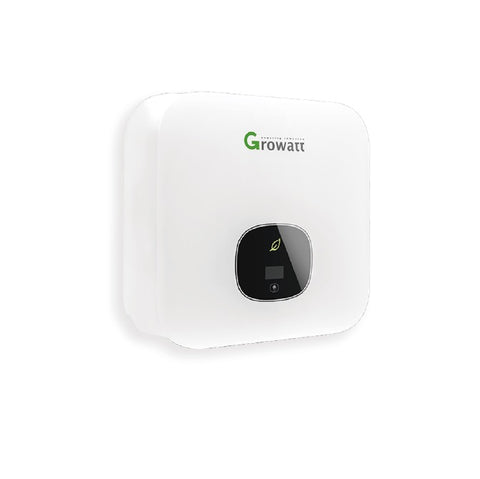

Central Inverter

Datasheet	MOD 5000TL	MOD 8000TL	MOD 10000TL	MOD 12000TL	MOD 15000TL
Input data (DC)
Max.recommended PV power (for module STC)	7500W	15000W	15000W	19500W	22500W
Max. DC voltage	1100V
Start voltage	160V		200V
Nominal voltage	580V
MPPT voltage range	140V-1000V
Output data (AC)
AC nominal power	5000W	8000W	10000W	13000W	15000W
Max. AC apparent power	5500W	8800W	11000W	14300W	16500W
Nominal AC voltage(range*)	220V/380V, 230V/400V (340-440V)
AC grid frequency(range*)	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	8.3A	15.0A	16.7A	21.7A	25.0A
Adjustable power factor	0.8leading…0.8lagging
Efficiency
MAX. efficiency	98.30%	98.60%	98.60%	98.60%	98.60%
European efficiency	97.50%	98.10%	98.10%	98.20%	98.20%
MPPT efficiency	99.90%

Solar System (on Grid) Three-Phase 5W/8W/10W/12W/15W
