The Rack Server LiFePO4 battery pack 48V 100AH LiFePO4 not only has a built-in BMS
system but has an integrated LCD screen that helps users quickly identify any issues and or quickly adjust any settings.

This 48V 100Ah battery pack can be used in parallel systems; it has significant advantages as a backup battery
for communication equipment.
The 48V 100AH LiFePO4 features high power density, small size, long service life, resistance to high temperature,
fast charging and discharging, and an effective modular design.

CHARACTERISTICS

1. Positive electrodes made of LiFePO4 (LFP), ensuring higher safety and a long service life.
2. Compatible with a variety of power supply devices.
3. Built-in BMS system with multiple protections and communication functions, which ensures high reliability of the battery pack and enables real-time monitoring of battery data over a long distance.
4. Low internal resistance, with efficient internal balance of the battery control circuit.
5. Wide working temperature range and high reliability.
6. Support for parallel connection of battery packs, max16p

FEATURES

• RS485/232/Can communication output for monitoring.
• Built-in BMS with charging current limitation.
• Built-in automatic protection for over-charge, over-discharge, low-temperature, and Over-temperature protections.
• State of charge and state of health indication.
• Built-in battery control for efficient operation.
• Internal cell balancing.
• Maintenance free system.

Communication Protocal: LCF/Heating/CAN/485/232

Storage Time Charging
The Normal Voltage is Charged once every 3 months, and the voltage of 10-10.5V must be charged the next day.

Battery Protection
Overcharge Protection, Overydischarge Protection, Overcurrent Protection, Short-Circuit
Protection, Overtemperature Protection

Inverter Connection Brand
GOODWE, PYLONTECH, SOLARAM, Victron Energy, GROWATT, SolaXPower, SOFAR, LUXPower, MUST, LTW, SOROREC, MEGAREVO, Voltronic Power, SRNE, PYLONTECH, DEYE, etc.

APPLICATION
Telecom Power-Post and Telecommunications, Communications, Power Stations, Power
Transmission, UPS, Computer Systems, Ligjting Systems, Solar Energy, Wind Energy, Home Energy Storage, etc.

GENERAL
INFORMATION

Casing Material	Steel case
Assembly	151P Single cell Capacity 100Ah
Cell (LiFePo4)	Lithium-ion Cell:EVE/BYD/CATL
Recommended Charging Type	CC-CV-Float charge
BMS	Integrated with LCD display

SPECIFICATIONS

Voltage	48V
Nominal Capacity (0.2°C, 5A)	100 Ah
Normal Energy (0.2°C , 5A)	4800WH
Max. Charge Current	50 A
Max. Constant Discharge Current	100 A
Charge Cut-off Voltage	54.75 V
Discharge Cut-off Voltage	37.5V
Cycle Life (0.2C, 25°C)	3000 with 100% DOD 4000 with 80% DOD 8000 with 50% DOD
Warranty Period	5 years
Warranty Period	5 years
Charging Standard	CC: 0.2C to 54.75V CV: 54.75V Floating: 52.5V – 54.75V Charging end current: 0.01C
Operating Temperature	Charging: 23 – 131°F / -5 – 55°C Discharging: -22 - 131°F / -30 – 55°C
Storage Time / Temperature	-5 - 95°F/ -20 – 35°C

Casing Material	Steel case
Assembly	15S1P Single cell Capacity 100Ah
Cell (LiFePo4)	Lithium-ion Cell:EVE/BYD/CATL
Recommended Charging Type	CC-CV-Float charge
BMS	Integrated with LCD display

Dimensions (L x W x H)	L580W450H210(mm)
Weight	56kg
Terminal	M6
Mounting Options	Floor or Rack mount

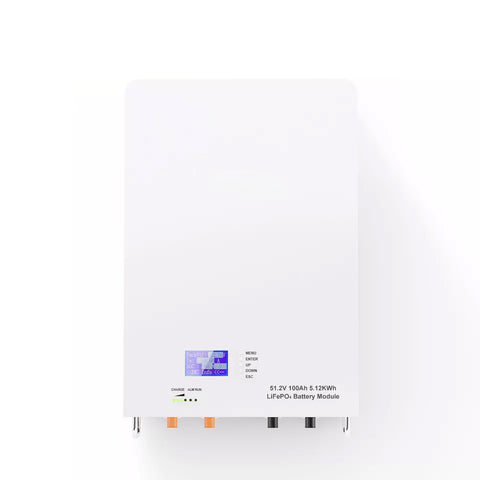

48V 100AH Wall Mounted Series Battery LiFePo4
