PRODUCT DETAILS
The Rack Server LiFePO4 battery pack 48V 100AH LiFePO4 not only has a built-in BMS
system but has an integrated LCD screen that helps users quickly identify any issues and or quickly adjust any settings.
This 48V 100Ah battery pack can be used in parallel systems; it has significant advantages as a backup battery
for communication equipment.
The 48V 100AH LiFePO4 features high power density, small size, long service life, resistance to high temperature,
fast charging and discharging, and an effective modular design.
CHARACTERISTICS
1. Positive electrodes made of LiFePO4 (LFP), ensuring higher safety and a long service life.
2. Compatible with a variety of power supply devices.
3. Built-in BMS system with multiple protections and communication functions, which ensures high reliability of the battery pack and enables real-time monitoring of battery data over a long distance.
4. Low internal resistance, with efficient internal balance of the battery control circuit.
5. Wide working temperature range and high reliability.

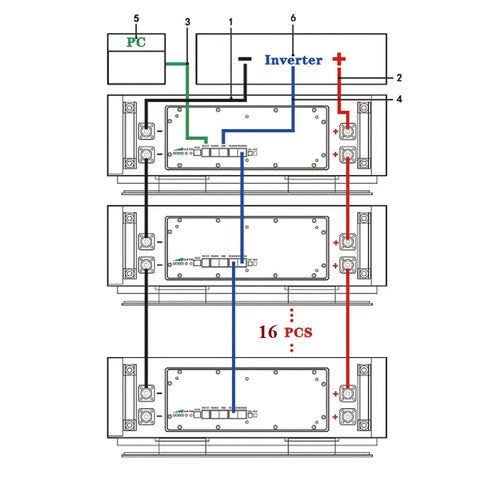

6. Support for parallel connection of battery packs, max16p
FEATURES
• RS485/232/Can communication output for monitoring.
• Built-in BMS with charging current limitation.
• Built-in automatic protection for over-charge, over-discharge, low-temperature, and Over-temperature protections.
• State of charge and state of health indication.
• Built-in battery control for efficient operation.
• Internal cell balancing.
• Maintenance free system.
Communication Protocal: LCF/Heating/CAN/485/232
Storage Time Charging
The Normal Voltage is Charged once every 3 months, and the voltage of 10-10.5V must be charged the next day.
Battery Protection
Overcharge Protection, Overydischarge Protection, Overcurrent Protection, Short-Circuit
Protection, Overtemperature Protection
Inverter Connection Brand
GOODWE, PYLONTECH, SOLARAM, Victron Energy, GROWATT, SolaXPower, SOFAR, LUXPower, MUST, LTW, SOROREC, MEGAREVO, Voltronic Power, SRNE, PYLONTECH, DEYE, etc.
APPLICATION
Telecom Power-Post and Telecommunications, Communications, Power Stations, Power
Transmission, UPS, Computer Systems, Ligjting Systems, Solar Energy, Wind Energy, Home Energy Storage, etc.
GENERAL
INFORMATION
Casing Material | Steel case |
Assembly | 151P Single cell Capacity 100Ah |
Cell (LiFePo4) | Lithium-ion Cell:EVE/BYD/CATL |
Recommended Charging Type | CC-CV-Float charge |
BMS | Integrated with LCD display |
SPECIFICATIONS
Voltage | 48V |
Nominal Capacity (0.2°C, 5A) | 100 Ah |
Normal Energy (0.2°C , 5A) | 4800WH |
Max. Charge Current | 50 A |
Max. Constant Discharge Current | 100 A |
Charge Cut-off Voltage | 54.75 V |
Discharge Cut-off Voltage | 37.5V |
Cycle Life (0.2C, 25°C) | 3000 with 100% DOD 4000 with 80% DOD 8000 with 50% DOD |
Warranty Period | 5 years |
Charging Standard | CC: 0.2C to 54.75V CV: 54.75V Floating: 52.5V – 54.75V Charging end current: 0.01C |
Operating Temperature | Charging: 23 – 131°F / -5 – 55°C Discharging: -22 - 131°F / -30 – 55°C |
Storage Time / Temperature | -5 - 95°F/ -20 – 35°C |
Casing Material | Steel case |
Assembly | 15S1P Single cell Capacity 100Ah |
Cell (LiFePo4) | Lithium-ion Cell:EVE/BYD/CATL |
Recommended Charging Type | CC-CV-Float charge |
BMS | Integrated with LCD display |
Dimensions (L x W x H) | L580*W450*H210(mm) |
Weight | 56kg |
Terminal | M6 |
Mounting Options | Floor or Rack mount |
