PRODUCT DETAILS

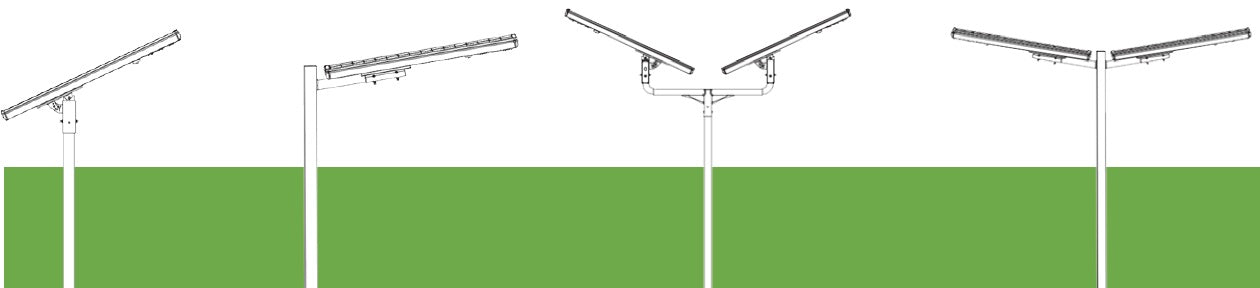

4 types of installation
Product Features:
1. The radiator is 6063 aluminium, which adopts thick anti-corrosion paint treatment.
2. No addional wiring is required, saving costs; multiple mounting brackets can be tube mounted, arm mounted, etc.
3. Direct luminous design, high lighting transmission PC protective cover, light transminance of more then 90%, high lighting efficiency.
4. MPPT controller, effective sunshine for 6 hours, lasting 3 rainy days.
5. Lighting sensor or radar sensor control output can be set as required.
6. Genuine imported chip lamp beads, high lighting efficiency, high energy saving efficiency.
wind resistance 70 m/s
Q235 metal bracket, wind resistance 70 m/s
the surface is hot-dip galvanized, spray outdoor powder,
anti-corrosion, no aging, discoloration
Angle adjustment
8/15/25/30 degree angle adjustable, to absorb
sun radiation better

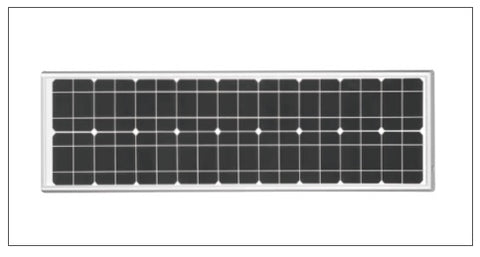

Monocrystalline Solar Panel
Imported Mono Solar Panels, the panel chip is closely covered,
the light charging is faster.
Module Effciency(%)>20.2

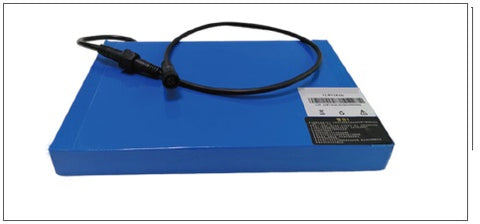

Lithium Battery with MPPT charger
Lithium Life PO4 battery, large capacity, full charge only need 6 hours
brignt sunshine, can support 3rainy days.
Overchange Protecion
Temperature control protection.

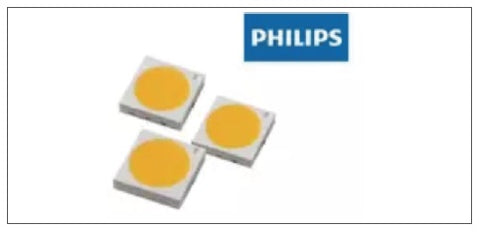

Fhilip Led Chip SMD3030/5050
Adopt Bridgelux LED chips, high lumen efficiency, 200-220LM/W, no
luminous degradation
Finial lamp Lm is about 160lm/W.

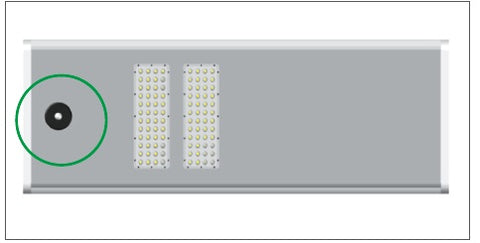

Sensor
Lighting Sensor and Radar Sensor is Optional
It can be supported by the demands of clients.
| Item | LG-LML-30W | LG-LML-40W | LG-LML-50W | LG-LML-60W | LG-LML-80W | LG-LML-100W | ||
| Whole Lighting | Timing mode | 80% Power first 2 hrs. 100% Power following 2 hrs. 60% power Dimming in sections can be performed according to requirements | ||||||
| Dimension(mm) | 830*358*82 | 1010*358*82 | 1310*358*82 | 1310*358*82 | 1630*358*82 | 1630*358*82 | ||
| Certificate | CE、ROSH、IP65 | |||||||
| Installation Height | 4-6M | 5-7M | 6-8M | 8M | 8-10M | 8-10M | ||
| Arm Installation Diameter | Options:45mm, 50mm, 60mm | |||||||
| Mono SOLAR panel | Solar Panel Power | 18V/50W | 18V/70W | 18V/70W | 18V/90W | 18V/120W | 18V/120W | |
| Life time | 25years ( The power attenuation of each year is around 1%) | |||||||
| Module Effciency(%) | >20.2 | |||||||
| Street Lamp | Lamp Power | 30W | 40W | 50W | 60W | 80W | 100W | |
| Light efficiency | 130lm/W | 130lm/W | 130lm/W | 130lm/W | 130lm/W | 130lm/W | ||
| Total Lumen | 4000lm | 5200lm | 6500lm | 7800lm | 10400lm | 13000lm | ||
| LED Chip | Philip SMD3030 LED Philip SMD5050 LED | |||||||
| LED Chip lumen efficiency | ≥210LM/W | |||||||
| Light Distribution type | C0~180 140°/ T90~270 | |||||||
| Viewing Angel | ||||||||
| Color Temperature | Warm White: 3000-3300K /Neutral White: 4000-4500K Pure White:5000-5500K/Cool White: 6000-6500K | |||||||
| Color rendering index | ＞70 | |||||||
| Life time | ＞5 years | |||||||
| Battery LiFepo4 | Battery Tape | LiFepo4 Battery | ||||||
| Battery Capacity | 12V 268WH | 12V 384WH | 12V 432WH | 12V 512WH | 12V 768WH | 12V 1152WH | ||
| Input Current | 32.0A | 32.0A | 40.0A | 40.0A | 60.0A | 90.0A | ||
| Battery life time | 5years | |||||||
| Battery Cycles | 3000 | |||||||
| Lighting Time: | 3 rainy days, | |||||||
| MPPT charge controller | including wireless communication module | |||||||
| Controller Voltage | DC12-24V | DC12-24V | DC12-24V | DC12-24V | DC12-24V | DC12-24V | ||
| Controller Current (Max) | 30A | 30A | 30A | 30A | 40A | 40A | ||
| Circuit Protection | Overcharge, discharge, short circuit, open load, lightning protection and other functions | |||||||
| Timing mode | 80% Power first 2 hrs. 100% Power following 2 hrs. 60% power Dimming in sections can be performed according to requirements | |||||||
| Charging Time (STC) | 6-8Hours (With STC) | |||||||
| Protection Grade | IP65 | |||||||
| Working Temperature | -20℃~+60℃(When the temperature is below -10℃,derating use ) | |||||||
| Storage Temperature | 0℃~45℃ | |||||||
