Solar Energy Kits (on Grid) are the most cost effective and easy PV solution available for home use.They are ideally suited for any household that is looking to reduce energy costs using an efficient and clean energy System.

FEATURES:

1.SWITCH ON AND OFF

Our grid-tied systems allow homeowners to get power from either their solar electric system or the utility grid,switching seamlessly between the grid-tied PV system and the grid.

2.SELL BACK YOUR POWER

When your grid-tied system is producing more power than your home is consuming,the excess power can often be sold back to the utility in a practice known as net metering.

3.USE THE GRID AT NIGHT

When your system is not producing sufficient power or during non-daylight hours your home can draw power from the utility grid.

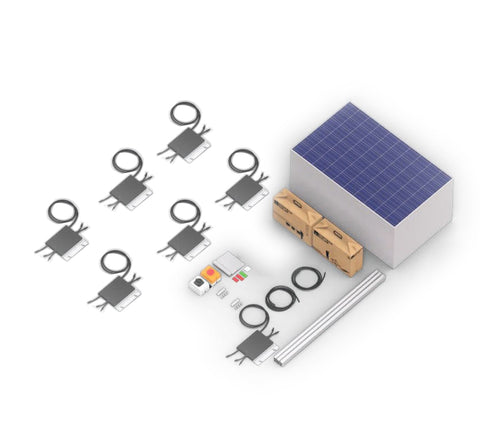

WHAT'S IN THE KITS

Solar modules
Solar on-grid inverter

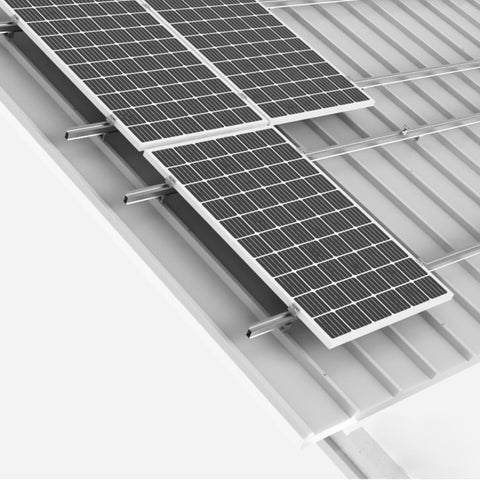

Custom roof mounting system
PV wiring harnesses
DC and AC disconnects
Wire management kit
Safety label kit
Single and three-line electrical and mechanical schematics
Micro inverter (available for Mini 500W)

SYSTEM LIST

Item	PV Solar Panel	Mounting System	Inverter	Distribution box	Cables
4KW	8pcs 500W	For Pitched / Flat Roof or Ground Installation	4PCS 1000W	1pcs	50m
6KW	12pcs 500W		6PCS 1000W	1pcs	100m
8KW	16pcs 500W		8PCS 1000W	1pcs	150m
10KW	20pcs 500W		10PCS 1000W	1pcs	200m
15KW	30pcs 500W		15PCS 1000W	2pcs	300m
20KW	40pcs 500W		20PCS 1000W	2pcs	400m
30KW	60pcs 500W		30PCS 1000W	3pcs	600m
40KW	80pcs 500W		40PCS 1000W	4pcs	800m
50KW	100pcs 500W		50PCS 1000W	5pcs	1000m

PV Solar Panel 500W

Solar Cell	MONO	Module Efﬁciency(%)	21.80%
Voltage at Pmax (Vmp)	41.97	Current at Pmax (Imp)	13.11
Open Circuit Voltage(Voc)	49.95	Short Circuit Current(lsc)	14.05
Dimension	2279×1134×35mm	Tempered Glass	3.2 mm High Permeability Coated
Frame	Anodized aluminum alloy	Power Tolerance(w)	±3%
Warrnanty: 10 Year Period 10 year period predicted output : Min. 90%, 25 year period predicted output : Min. 85%.

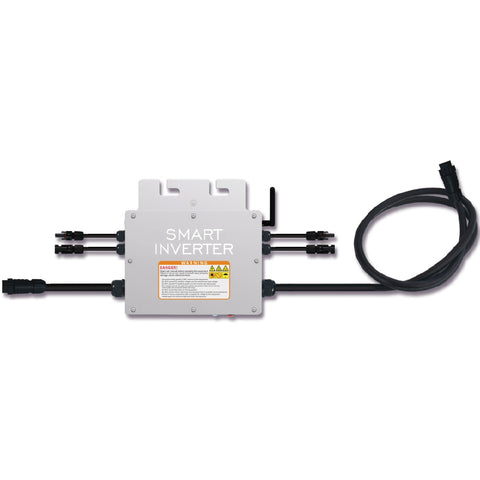

Micro Inverter 1000W

Number of Input MC4 Connector	2 Sets
MPPT Voltage Range	28V-55V
Operation Voltage Range	20V-60V
Maximum Input Voltage	60V
Startup Voltage	20V
Maximum Input Power	2*500W
Maximum Input Current	2*16.66A

Output Data(AC)

Single-Phase Grid Type	230V
Rated Output Power	950W
Maximum Output Power	1000W
Nominal Output Current	4.13A
Nominal Output Voltage	230VAC
Default Output Voltage Range	230VAC : 180V-280V
Nominal Output Frequency	50Hz / 60Hz
Default Output Frequency Range	50Hz : 47.5Hz-52.5Hz/60Hz : 57.5Hz-62.5Hz
Power Factor	>0.99
Total Harmonic Distortion	THD <5%
Maximum Units per Branch	4 Sets

Efﬁciency

Peak Efﬁciency	95%
CEC Weighted Efﬁciency	230VAC : 93.5%
Nominal MPPT Efﬁciency	99.90%
Night Power Consumption	<700mW

Mechanical Data

Operating Ambient Temperature Range	-40°C to +65°C
Storage Temperature Range	-40°C to +85°C
Max Current of AC Bus Cable	20A
Waterproof Grade	IP65

Other Features
Communication	WIFI With Cloud Monitoring
Transformer Design	High Frequency Transformers, Galvanically Isolated
Integrated Ground	Equipment ground is provided by the PE in the AC cable. No additional ground is required.
Protection Functions	Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc.

220v Micro Inverter Solar Energy System On-Grid 5-50KW
