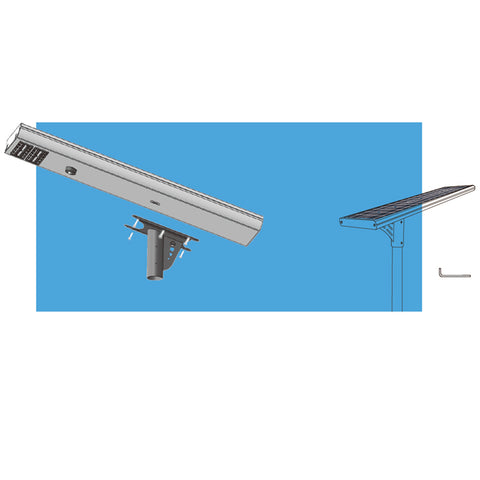

4 types of installation

Product Features:
1. The radiator is 6063 aluminium, which adopts thick anti-corrosion paint treatment.
2. No addional wiring is required, saving costs; multiple mounting brackets can be tube mounted, arm mounted, etc.
3. Direct luminous design, high lighting transmission PC protective cover, light transminance of more then 90%, high lighting efficiency.
4. MPPT controller, effective sunshine for 6 hours, lasting 3 rainy days.
5. Lighting sensor or radar sensor control output can be set as required.
6. Genuine imported chip lamp beads, high lighting efficiency, high energy saving efficiency.

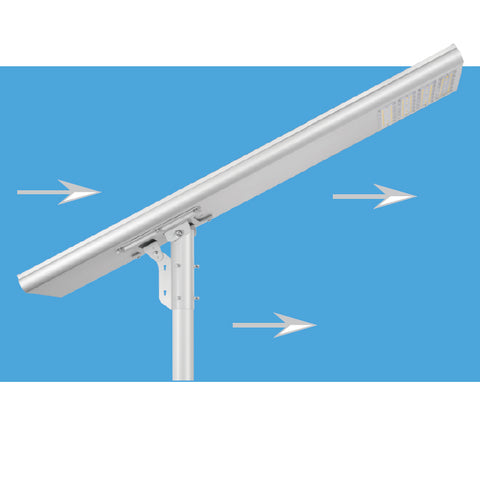

wind resistance 70 m/s
Q235 metal bracket, wind resistance 70 m/s
the surface is hot-dip galvanized, spray outdoor powder,
anti-corrosion, no aging, discoloration

Angle adjustment
8/15/25/30 degree angle adjustable, to absorb
sun radiation better

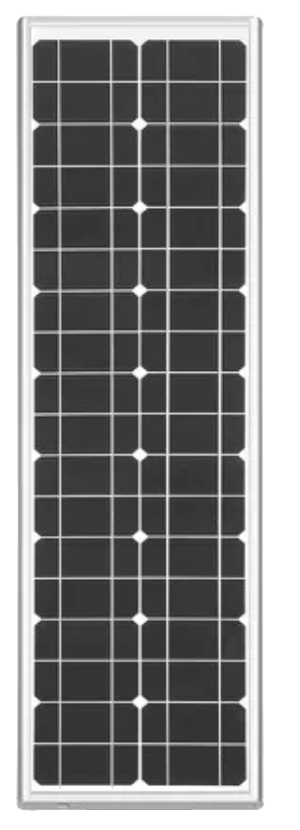

Monocrystalline Solar Panel
Imported Mono Solar Panels, the panel chip is closely covered,
the light charging is faster.
Module Effciency(%)>20.2

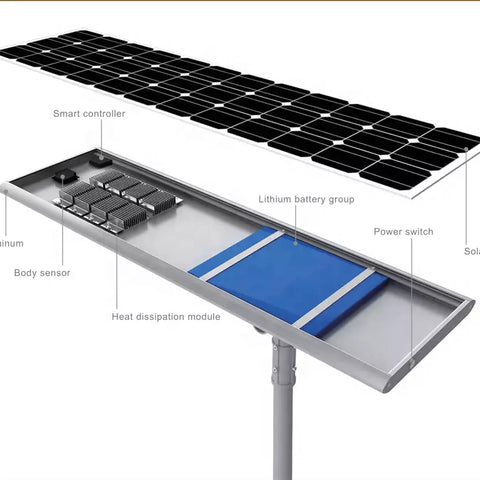

Lithium Battery with MPPT charger
Lithium Life PO4 battery, large capacity, full charge only need 6 hours
brignt sunshine, can support 3rainy days.
Overchange Protecion
Temperature control protection.

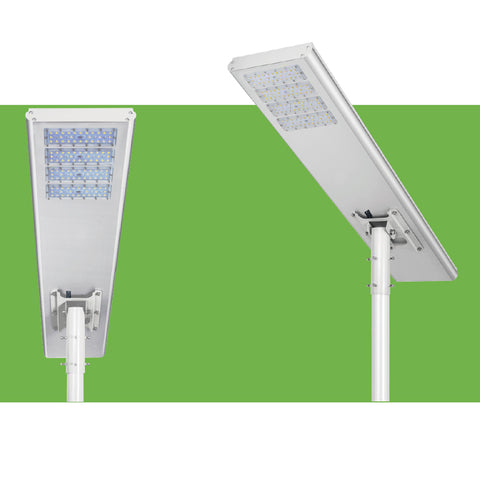

Fhilip Led Chip SMD3030/5050
Adopt Bridgelux LED chips, high lumen efficiency, 200-220LM/W, no
luminous degradation
Finial lamp Lm is about 160lm/W.

Sensor
Lighting Sensor and Radar Sensor is Optional
It can be supported by the demands of clients.

Item			LG-LML-30W	LG-LML-40W	LG-LML-50W	LG-LML-60W	LG-LML-80W	LG-LML-100W
Whole Lighting	Timing mode		80% Power first 2 hrs. 100% Power following 2 hrs. 60% power Dimming in sections can be performed according to requirements
	Dimension(mm)		83035882	101035882	131035882	131035882	163035882	163035882
	Certificate			CE、ROSH、IP65
	Installation Height		4-6M	5-7M	6-8M	8M	8-10M	8-10M
	Arm Installation Diameter			Options:45mm, 50mm, 60mm

Mono SOLAR panel		Solar Panel Power	18V/50W	18V/70W	18V/70W	18V/90W	18V/120W	18V/120W
		Life time	25years ( The power attenuation of each year is around 1%)
		Module Effciency(%)	>20.2

Street Lamp	Lamp Power		30W	40W	50W	60W	80W	100W
	Light efficiency		130lm/W	130lm/W	130lm/W	130lm/W	130lm/W	130lm/W
	Total Lumen		4000lm	5200lm	6500lm	7800lm	10400lm	13000lm
	LED Chip		Philip SMD3030 LED Philip SMD5050 LED
	LED Chip lumen efficiency		≥210LM/W
	Light Distribution type		C0~180 140°/ T90~270
	Viewing Angel
	Color Temperature		Warm White: 3000-3300K /Neutral White: 4000-4500K Pure White:5000-5500K/Cool White: 6000-6500K
	Color rendering index		＞70
	Life time		＞5 years

Battery LiFepo4	Battery Tape			LiFepo4 Battery
	Battery Capacity		12V 268WH	12V 384WH	12V 432WH	12V 512WH	12V 768WH	12V 1152WH
	Input Current		32.0A	32.0A	40.0A	40.0A	60.0A	90.0A
	Battery life time		5years
	Battery Cycles		3000
	Lighting Time:		3 rainy days,
	MPPT charge controller		including wireless communication module
	Controller Voltage		DC12-24V	DC12-24V	DC12-24V	DC12-24V	DC12-24V	DC12-24V
	Controller Current (Max)		30A	30A	30A	30A	40A	40A
	Circuit Protection		Overcharge, discharge, short circuit, open load, lightning protection and other functions
	Timing mode		80% Power first 2 hrs. 100% Power following 2 hrs. 60% power Dimming in sections can be performed according to requirements
	Charging Time (STC)		6-8Hours (With STC)
	Protection Grade		IP65
	Working Temperature		-20℃~+60℃(When the temperature is below -10℃,derating use )
	Storage Temperature		0℃~45℃

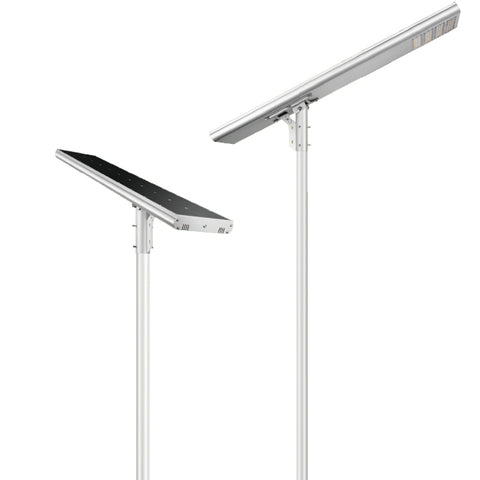

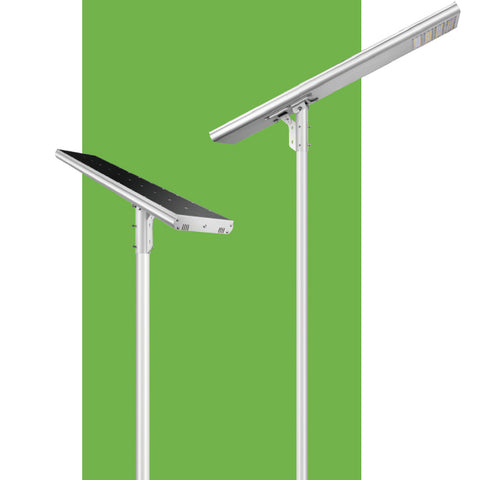

Integrated Solar Street light LEL series
