PRODUCT DETAILS

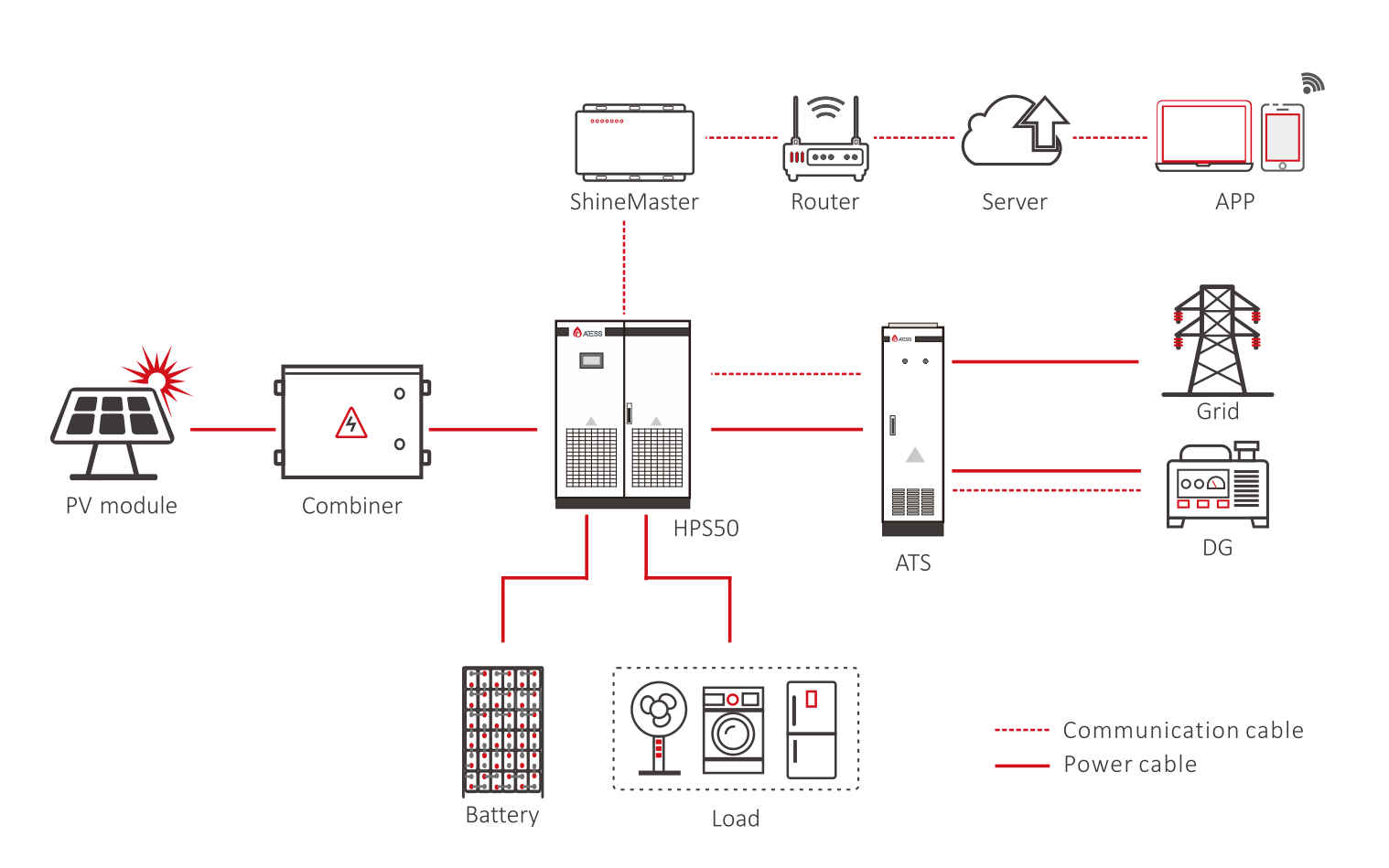

Hybrid PV systems have the ability to generate and store power at periods when electricity prices are at their highest and delivering it to the load on a scheduled time frame. Operational in both on-grid and off-grid mode, Aurora hybrid solar kits offer the highest level of 24-hour energy security on the market today.
Hybrid, On & Off-Grid
Functionality
hybrid solar energy storage kits include state of the art Li-Ion battery banks that store and distribute the PV systems energy during grid blackouts or during high utility tariff hours.
Energy independence starts here.
With an hybrid solar + battery system now you can make the choice to be grid connected or not.
Common Applications
Residential or commercial locations with unstable grids and frequent brownouts
Locations that don’t allow net metering or selling back to the utility grid
Sites with loads that cannot afford power to be lost
Those who want more energy independence
Sites with no utility grid
Housing developers looking to add value to their properties
Hybrid Benefits
Can operate in On Grid or Off Grid mode
Designed for +5000 cycles at 90% DOD
Sell power to the grid or store the excess for later use
Hedge yourself against peak electric tariff hours
Prioritize your energy consumption
Up to 10 units can be paralleled at a time
Protect yourself against utility outages
Energy Independence!
| Item | PV Solar Panel | Inverter | Battery | Mounting System | PV combiner box | PV Cable |
| 30KW | 60pcs 500W | 1pcs | 30KW/50KW | 1.Tile Rooftop System 2.Meta Sheet Rooftop System | 1pcs | 4*50M |
| 50KW | 100pcs 500W | 1pcs | 50KW/100KW | 1pcs | 7*50M | |
| 100KW | 200pcs 500W | 1pcs | 100KW/150KW | 1pcs | 14*50M | |
| 120KW | 240pcs 500W | 1pcs | 150KW/250KW | 1pcs | 16*50M | |
| 150KW | 300pcs 500W | 1pcs | 150KW/250KW | 2pcs | 20*50M |
| Solar Cell | MONO | Module Efficiency(%) | 21.80% |
| Voltage at Pmax (Vmp) | 34.2 | Current at Pmax (Imp) | 13.16 |
| Open Circuit Voltage(Voc) | 41.04 | Short Circuit Current(lsc) | 13.95 |
| Dimension | 1909x1134x35mm | Tempered Glass | 3.2 mm High Permeability Coated |
| Frame | Anodized aluminum alloy | Power Tolerance(w) | ±3% |
| Warrnanty: 10 Year Period 10 year period predicted output : Min. 90%, 25 year period predicted output : Min. 85%. | |||
| Item | BR45T | BR50T | BR60T | BR75T | BR100T | BR138T | BR145T |
| Configuration | 24S1P | 24S1P | 24S1P | 12S2P | 12S2P | 12S2P | 12S2P |
| Rated capacity | 100Ah | ||||||
| Rated energy | 7.68kWh | ||||||
| Rated voltage | 76.8V | 76.8V | 76.8V | 38.4V | 38.4V | 38.4V | 38.4V |
| Voltage range | 67.2-87.6V | 67.2-87.6V | 67.2-87.6V | 33.6~43.8V | 33.6~43.8V | 33.6~43.8V | 33.6~43.8V |
| Rated charge/discharge | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C |
| Max. charge/discharge | 1C | 1C | 1C | 1C | 1C | 1C | 1C |
