PRODUCT DETAILS
Residential Solar Energy Kits are the most cost effective and easy PV solution available for home use.They are
ideally suited for any household that is looking to reduce energy costs using an efficient and clean energys
stem.
1. SWITCH ON AND OFF
Our grid-tied systems allow homeowners to get power from either their solar electric system or the utility grid,switching seamlessly between the grid-tied PV system and the
grid.
2. SELL BACK YOUR POWER
When your grid-tied system is producing more power than your home is consuming,the
excess power can often be sold back to the utility in a practice known as net metering.
3. USE THE GRID AT NIGHT
When your system is not producing sufficient power or during non-daylight hours your
home can draw power from the utility grid.

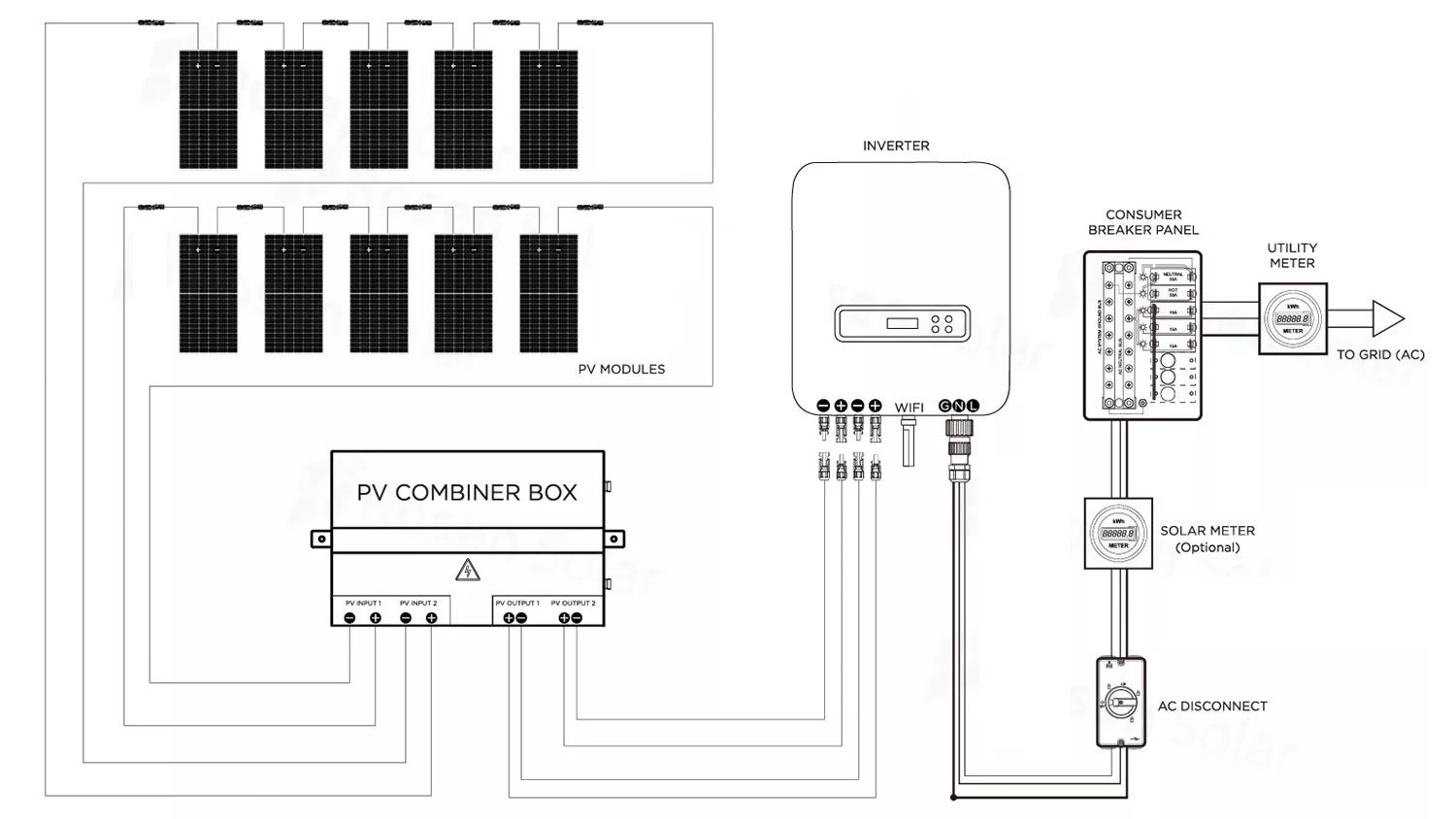

RESIDENTIAL PV SYSTEMS READY TO INSTALL
Configured in a'plug n play 'solution,our On-Grid residential PV systems allow installers to safely connect them to the AC main
service panel of any household anywhere in the world.Owners are given the option to either auto consume the power generated from
their PV system or sell excess energy back to their local utility provider. These systems are offered with mounting systems for
multiple roof types and configurations which offers stability and aesthetics to any rooftop.
System list
| Item | PV Solar Panel | Inverter | Mounting System | PV combiner box | PV Cable |
| 3KW | 6pcs 500W | 1pcs | 1.Tile Rooftop System 2.Meta Sheet Rooftop System | 1pcs | 2*50M |
| 3KW | 8pcs 500W | 1pcs | 1pcs | 2*50M | |
| 5KW | 10pcs 500W | 1pcs | 1pcs | 2*50M | |
| 6KW | 12pcs 500W | 1pcs | 1pcs | 4*50M | |
| 8KW | 16pcs 500W | 1pcs | 1pcs | 2*50M | |
| 10KW | 20pcs 500W | 1pcs | 1pcs | 4*50M |
PV Solar Panel 500W
| Solar Cell | MONO | Module Efficiency(%) | 21.80% |
| Voltage at Pmax (Vmp) | 41.97 | Current at Pmax (Imp) | 13.11 |
| Open Circuit Voltage(Voc) | 49.95 | Short Circuit Current(lsc) | 14.05 |
| Dimension | 2279×1134×35mm | Tempered Glass | 3.2 mm High Permeability Coated |
| Frame | Anodized aluminum alloy | Power Tolerance(w) | ±3% |
| Warrnanty: 10 Year Period 10 year period predicted output : Min. 90%, 25 year period predicted output : Min. 85%. | |||
Central Inverter
| Model No. | Mini3000W | Mini4000W | Mini5000W | Mini6000W | Mini8000W | Mini10000W |
| Input Data(DC) | ||||||
| Max. DC Power | 4.2 kW | 5.88 kW | 7 kW | 8.1 kW | 12 kW | 15 kW |
| Max. DC Voltage | 500 V | 550 V | 550 V | 550 V | 600 V | 600 V |
| Nominal DC Voltage | 360 V | 360 V | 360 V | 360 V | 360 V | 360 V |
| Max. DC Current | 12.5 A | 12.5 A | 12.5 A | 12.5 A | 13.5 A | 27 A |
| MPP(T) Voltage Range | 80~500 V | 80~550 V | 80~550 V | 80~550 V | 60~550 V | 60~550 V |
| Connectors | MC4 | MC4 | MC4 | MC4 | MC4 | MC4 |
| Output Data (AC) | ||||||
| Max. AC Power | 3 kW | 4.2 kW | 5 kW | 6 kW | 8 kW | 10 kW |
| Nominal AC Voltage | 230 V | 230 V | 230 V | 230 V | 230 V | 230 V |
| Max. AC Current | 13.6 A | 19 A | 22.7 A | 27.2 A | 38.3 A | 45.5 A |
| Frequency | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz |
| Power Factor (cosθ) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Distortion (THD) | < 3 % | < 3 % | < 3 % | < 3 % | < 3 % | < 3 % |
| No of feed-in phases | 1 | 1 | 1 | 1 | 1 | 1 |
| Max. Efficiency | 98.20% | 98.40% | 98.40% | 98.40% | 98.10% | 98.10% |
| Euro Efficiency | 97.10% | 97.50% | 97.50% | 97.50% | 97.60% | 97.60% |
