PRODUCT DETAILS
Commercial Solar System are ideally suited for any business that is looking to reduce rising energy costs and
hedge against future energy inflation.Our pre-engineered kits are suitable for most installation sites including
commercial roof tops and ground mounting locations.
1. HELP THE ENVIRONMENT
Business owners reduce electricity costs whilst simultaneously promote their brand commitment to the environment and enhance their social corporate responsibility.
2. INCREASE YOUR VALUE
Depreciate financial contributions and sell any excess electricity generated by the system back to the grid.Increase the ROI and enjoy added marketing benefits from a
highly visible landmark.
3. GREAT ADAPTABILITY
Let our systems fit in your needs.We offer flexible design to serve space restricted
areas.They come in a variety of inverter voltage ranges which can be adapted to site-specific electrical requirements.
SOLAR POWER FOR YOUR BUSINESS
Offered in both pre-configured and site specific designs, PV systems save time and money when planning and adopting solar into
commercial settings.
Designed to match your business's requirements,commercial PV systems are delivered install ready and hold internationally compliant
certifications.

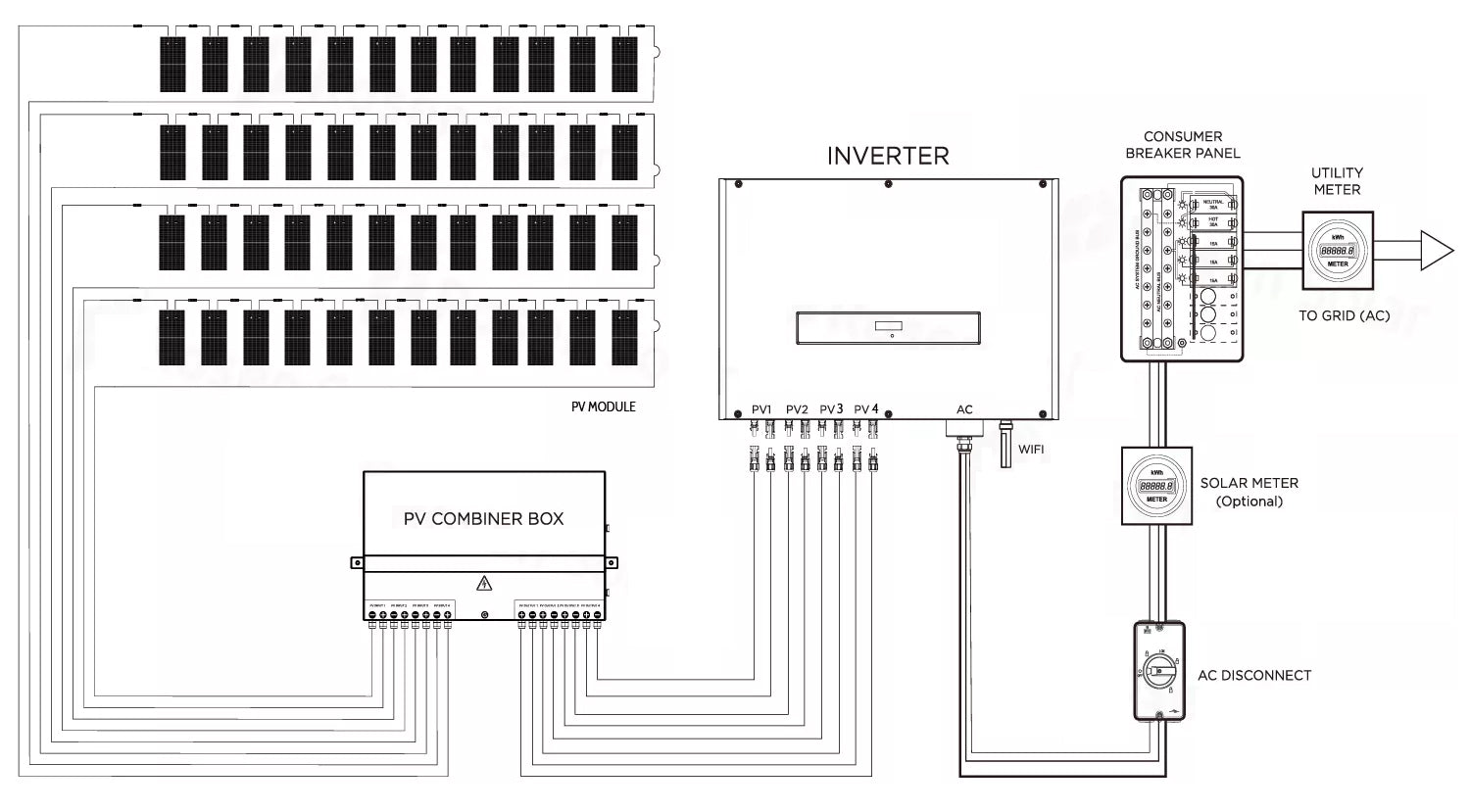

System list
| Item | PV Solar Panel | Inverter | Mounting System | PV combiner box | PV Cable |
| 15KW | 30pcs 500W | 1pcs | 1.Tile Rooftop System 2.Meta Sheet Rooftop System | 1pcs | 2*50M |
| 20KW | 40pcs 500W | 1pcs | 1pcs | 2*50M | |
| 25KW | 50pcs 500W | 1pcs | 1pcs | 3*50M | |
| 30KW | 60pcs 500W | 1pcs | 1pcs | 3*50M | |
| 35KW | 70pcs 500W | 1pcs | 1pcs | 4*50M | |
| 40KW | 80pcs 500W | 1pcs | 1pcs | 4*50M |
PV Solar Panel 500W
| Solar Cell | MONO | Module Efficiency(%) | 21.80% |
| Voltage at Pmax (Vmp) | 41.97 | Current at Pmax (Imp) | 13.11 |
| Open Circuit Voltage(Voc) | 49.95 | Short Circuit Current(lsc) | 14.05 |
| Dimension | 2279×1134×35mm | Tempered Glass | 3.2 mm High Permeability Coated |
| Frame | Anodized aluminum alloy | Power Tolerance(w) | ±3% |
| Warrnanty: 10 Year Period 10 year period predicted output : Min. 90%, 25 year period predicted output : Min. 85%. | |||
Central Inverter
Datasheet | MID15K | MID20K | MID25K | MID30K | MID36K | MID40K |
Input data (DC) | ||||||
Max. recommended PV power (for module STC) | 22500W | 30000W | 37500W | 45000W | 54000W | 60000W |
Max. DC voltage | 1100V | 1100V | ||||
Start Voltage | 250V | 250V | ||||
Nominal voltage | 580V | 600V | ||||
MPPT voltage range | 160V-1000V | 200-1000V | ||||
No. of MPP trackers | 2 | 3 | 4 | |||
No. of PV strings per MPP tracker | 2 | 2/3 | 2 | |||
Max. input current per MPPT tracker* | 27A | 27A/40.5A | 26A | |||
Max. short circuit current per MPPT | 33.8A | 33.8A/50.7A | 32A | |||
Output data (AC) | ||||||
Rated AC output power | 15000W | 20000W | 25000W | 30000W | 36000W | 40000W |
Max. AC apparent power | 16600VA | 22000VA | 27700VA | 33300VA | 39600VA | 44000VA |
Nominal AC voltage(range*) | 220V/380V, 230V/400V (340-440V) | |||||
AC grid frequency;(range*) | 50/60 Hz (45-55Hz/55-65 Hz) | |||||
Max. output current | 24.2A | 31.9A | 40.2A | 50.5A | 60.0A | 66.6A |
AC grid connection type | 3W+N+PE | 3W+N+PE | ||||
